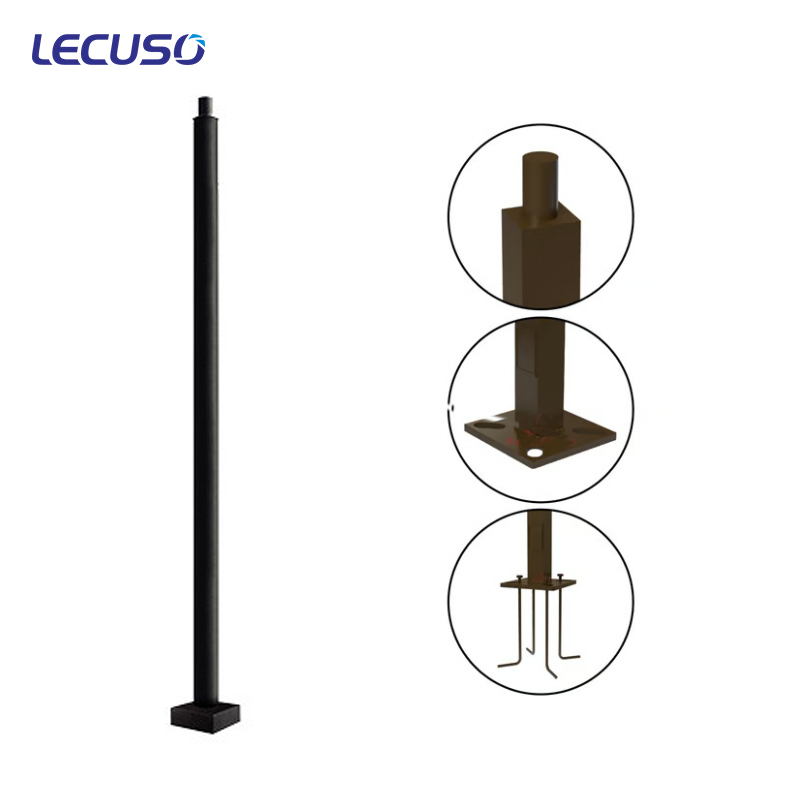

15FT 20FT 25FT 30FT Heavy Duty Galvanized Square Parking Lot Steel Light Pole
Product Introduction
Pole Top Options: Aremovable pole cap is provrded f the pole is drled for aaching ight fixtures The drllpattern and drllorentation neds to be provided y the customer unless Solar Light fixtures are used for the project. Iftenon option is selected, a 2 inch diameter tenon with 4 inch length is provided.
Pole Shaft: Electro -welded ASTM -AS00 Crade Csteeltubing with a minimum yield strength of 50.000 psi is used to fabricate the pole shart
Handhole: 3" X 6" size reinforced handhole is located at 12 inches from the base. Ground lug is included.
Finish: Commercialgrade, super durable powder coat inish. Dark Bronze, White, Black, Cray and Creen colors are provided at no exra charge. Other colors and custom color
options are available
Anchor Bolts A st of galenized ste anchor bolts specitcaly designed fer thisllght polels required for each pole assembly Each anchor bolt includes 2 nutsand 2 weshers
The top portion of the anchor boltisthreaded for securing and leveling the pole with the provided nuts and washers An actual site paper anchor bolt templte is provided
Bolt Circle Range: Min: 8" to Max: 11" Standard Bolt Circle template: 11"
Base Cover: Two piece square base cover s valble at a surcharge. Stanles steel screws are included to atach the 2 pieces together afer pole installatin
other options he followng optlons are valble: Custom tenon szes custon colrs, electrccFloutlets custom pele heghts additional hancholes and custom base plte
dimensions.
Product Parameters
| Material | Q235,Q345,Iron,Stell,Aluminum |
| Brackets/ Arm | Single or double brackets/ arm are in the shape and dimension as per customers requirement |
| Welding | It has past flaw testing.Internal and external double welding makes the welding beautiful in shape.And confirms with international welding standard of CWB,BS EN15614 |
| Thickness | 1.8mm-20mm |
| surface treatment | Hot dip galvanization with thickness of 80-100m average in accordance with Chinese standard GB/T 13912-2002 or American standard ASTM A123, IS: 2626-1985.BS EN ISO 1461 |
| Base plate mounted | Base plate is square or round in shape with slotted holes for anchor bolt and dimension as per customers requirement. |
| Wind resistance | Customized,according to customer's environment |
| Powder coating | Pure polyester powder painting, color is optional according to RAL Color stardand. |
| Customized/Design Service | Offered |
| Product | Size(MM) | THK(MM) | Flange(MM) | Basic(M) |
| 3m Pole | 100mm*100mm | 3mm | 250*10 | 4-M16*0.5M |
| 4m Pole | 100mm*100mm | 3mm | 260*12 | 4-M16*0.5M |
| 6M Pole | 100mm*100mm | 3mm | 260*12 | 4-M16*0.5M |
| 7M Pole | 150mm*150mm | 3mm | 300*16 | 4-M18*0.5M |
| 9M Pole | 150mm*150mm | 4mm | 300*16 | 4-M18*0.6M |
| 9M Pole | 150mm*150mm | 4mm | 350*20 | 4-M20*0.6M |
| 11M Pole | 180mm*180mm | 4mm | 400*20 | 4-M24*1M |
| 12M Pole | 180mm*180mm | 4mm | 400*20 | 4-M24*1M |

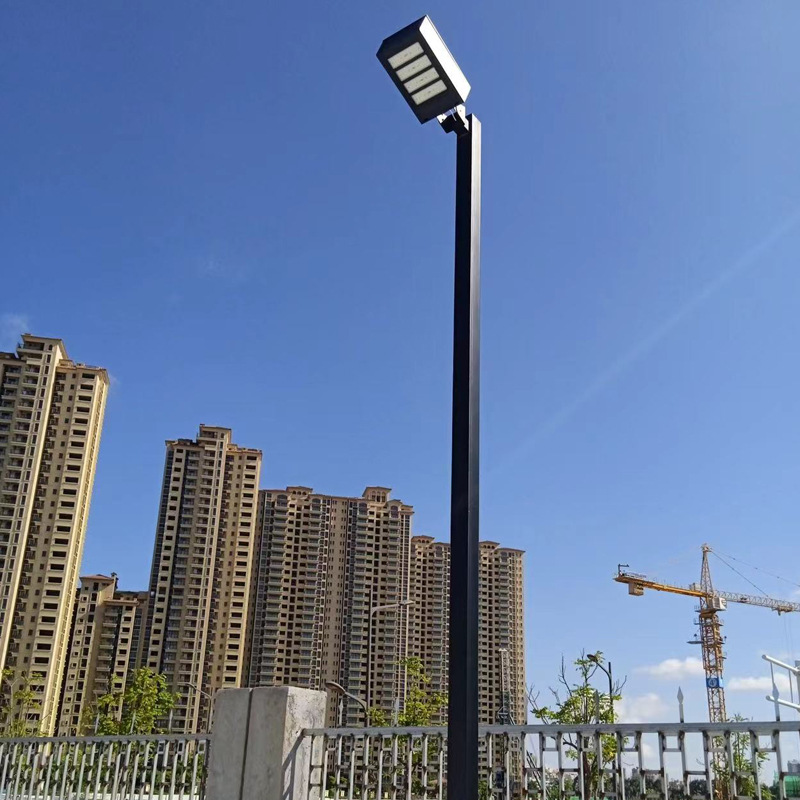

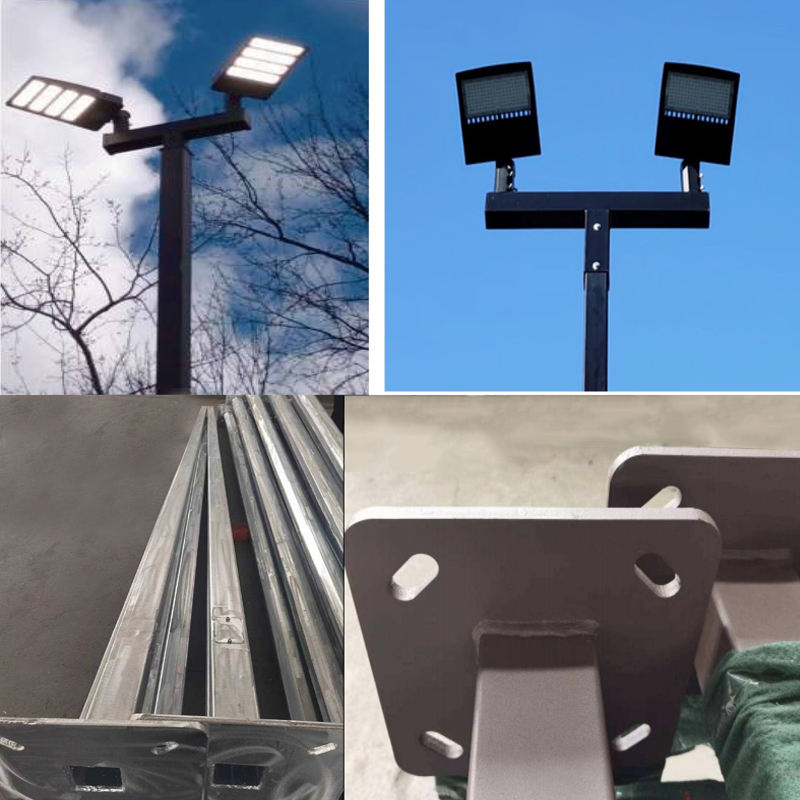

Detail Display
