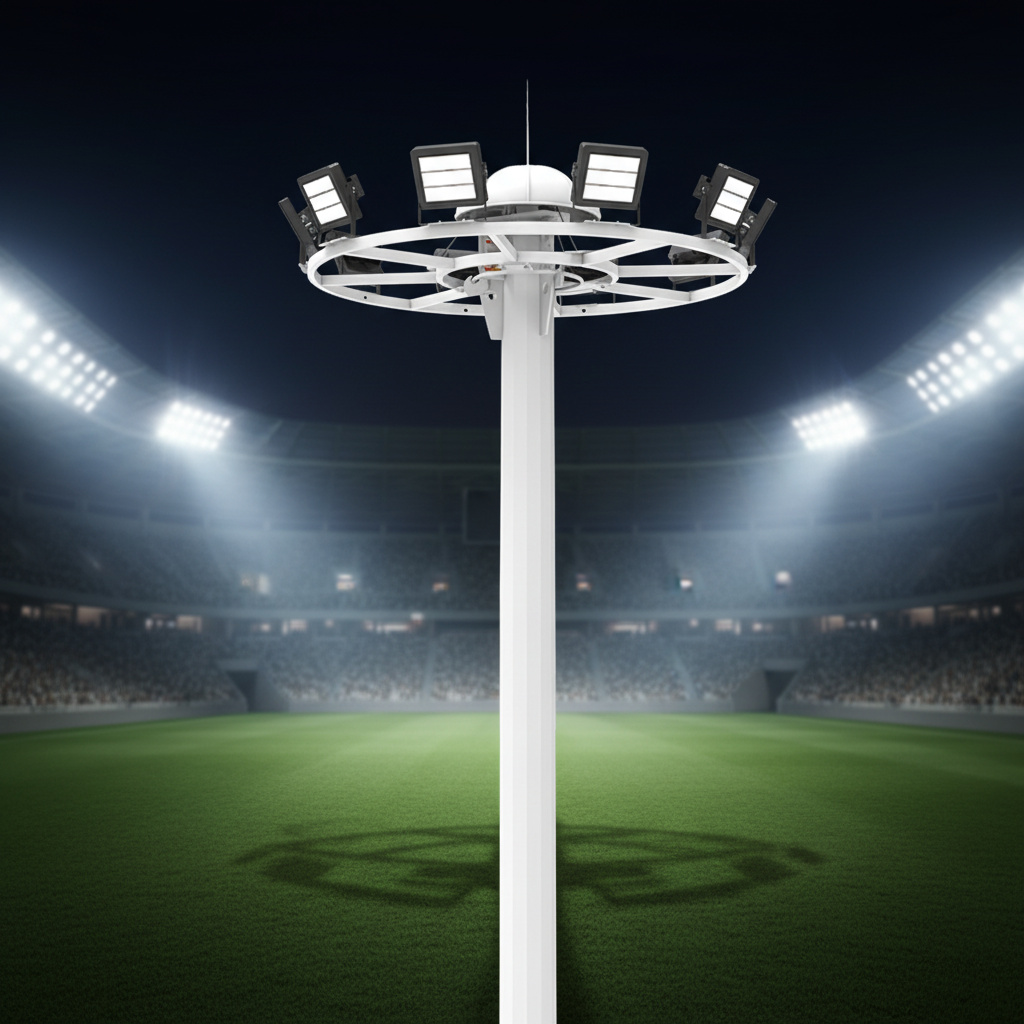

15M-40M Hot Dip Galvanized High Mast Light Pole for Stadium
Features
1.Safety design of super-large variable cross-section conical rod body structure
The rod body is made of high-strength low-alloy structural steel (Q355C and above).
The rod body is made of high-strength low-alloy structural steel (Q355C and above).

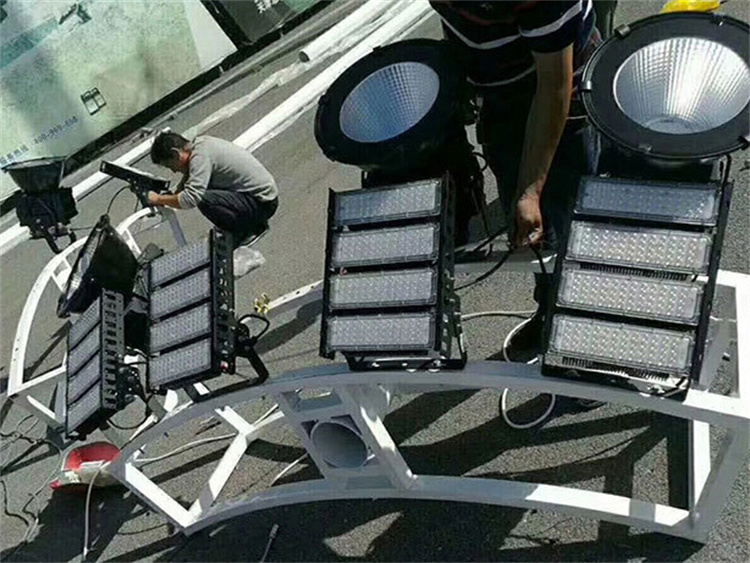

2.Heavy-duty automatic lifting multi-light panel system
Equipped with a heavy-duty double or multi-hoist lifting system at the top, it can smoothly lift giant light panels with a total weight of 1-3 tons.
Equipped with a heavy-duty double or multi-hoist lifting system at the top, it can smoothly lift giant light panels with a total weight of 1-3 tons.
3.Intelligent cluster lighting and energy management
Integrated intelligent lighting control system, each lamp on the light panel can be independently grouped and controlled, achieving zoned, time-segmented and brightness segmented lighting.
Integrated intelligent lighting control system, each lamp on the light panel can be independently grouped and controlled, achieving zoned, time-segmented and brightness segmented lighting.
4.Full life cycle engineering services and certification
We offer a full-process turnkey engineering service covering geological exploration, foundation design, wind tunnel testing consultation, manufacturing supervision, installation guidance, commissioning and training
We offer a full-process turnkey engineering service covering geological exploration, foundation design, wind tunnel testing consultation, manufacturing supervision, installation guidance, commissioning and training
Product Parameters
| HEIGHT | DIAMERTER(MM) | THICKNESS(MM) | Base Plate |
| 18M | Top DIA:230 Bottom DIA:450MM | 6mm/6mm | 750*20MM |
| 20M | Top DIA:230 Bottom DIA:450MM | 6mm/6mm | 900*20MM |
| 25M | Top DIA:240 Bottom DIA:530MM | 6mm/6mm/8mm | 900*25MM |
| 30M | Top DIA:250 Bottom DIA:550MM | 6mm/8mm/10mm | 1000*30MM |
| 35M | Top DIA:260 Bottom DIA:580MM | 6mm/8mm/8mm/10mm | 1000*30MM |
| 40M | Top DIA:280 Bottom DIA:900MM | 6mm/8mm/8mm/10mm/12mm | 1200*40MM |
| 45M | Top DIA:280 Bottom DIA:900MM | 6mm/8mm/10mm/10mm/12mm | 1200*40MM |
| Suit for | Airport /seaport /plaza/stadium/square/highway/street way etc |
| Shape | Conoid ,Multi-pyramidal,Columniform,polygonal or conical |
| Material | Usually Q345B/A572, Q235B/A36,As well as Hot rolled coil from Q460 ,ASTM573 GR65, GR50 ,SS400,SS490. |
| Lamp power | 200 W- 2000 W (HPS/MH) 220V (+-10%) /50Hz |

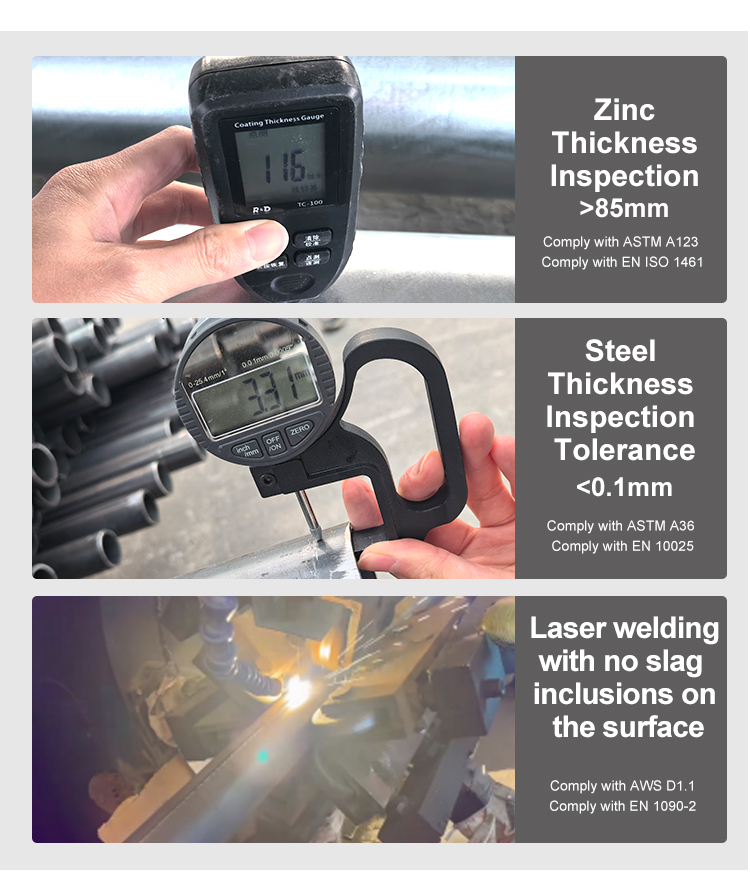

| Surface treatment | Hot dip galvanized Following ASTM A 123, color polyester power or any other standard by client required. |
| Joint of Poles | Insert mode,innerflange mode,face to face joint mode |
| Design of pole | Against earthquake of 8 grade |
| Length of per section | Within 14m once forming without slip joint |
| Welding | We has past flaw testing.Internal and external double welding makes the welding beautiful in shape Welding Standard :AWS ( American Welding Society ) |
| Thickness | 1 mm to 30 mm |

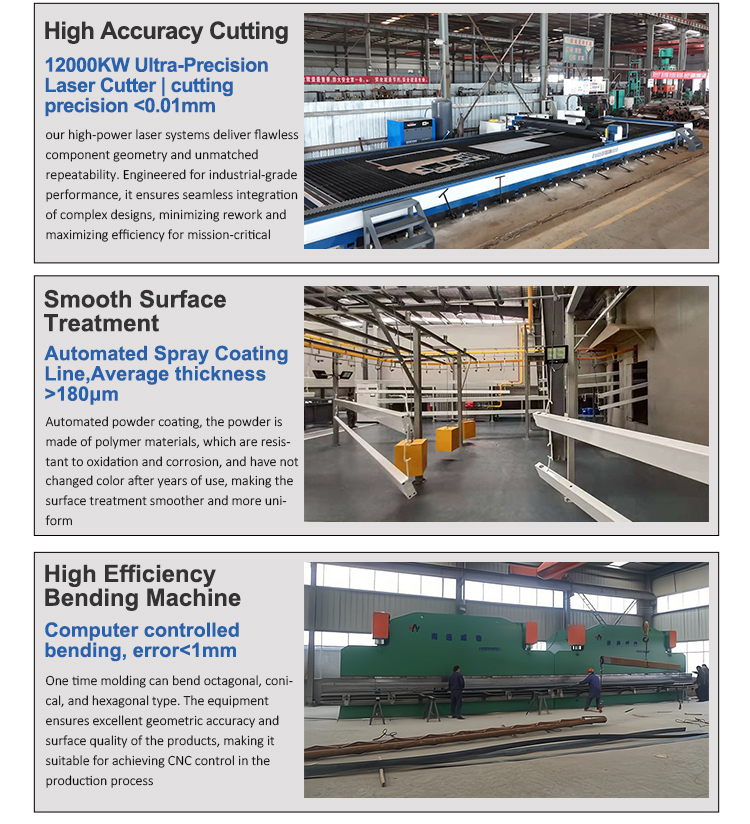

| Production Process | Rew material test → Cuttingj →Molding or bending →Welidng (longitudinal )→Dimension verify →Flange welding →Hole drilling →Calibration →Deburr→Galvanization or powder coating ,painting →Recalibration →Thread →Packages |
| Packages | Our high Mast Octagonal Steel Pole as normal cover by Mat or straw bale at the top and bottom ,anyway also can following by client required ,each 40HC or OT can loading how many pcs will calculation base on the client actually specification and data. |

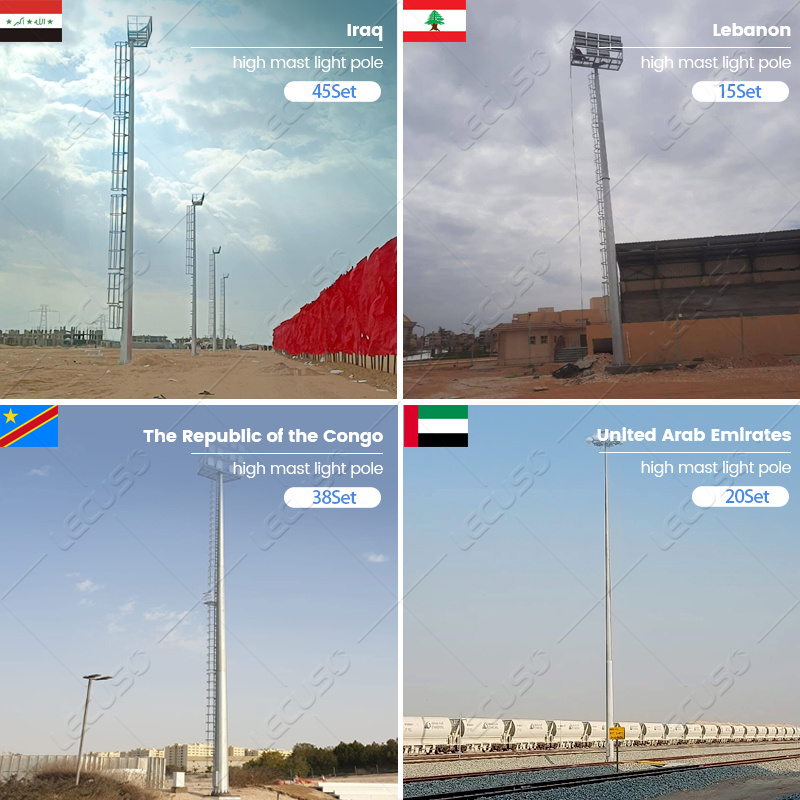

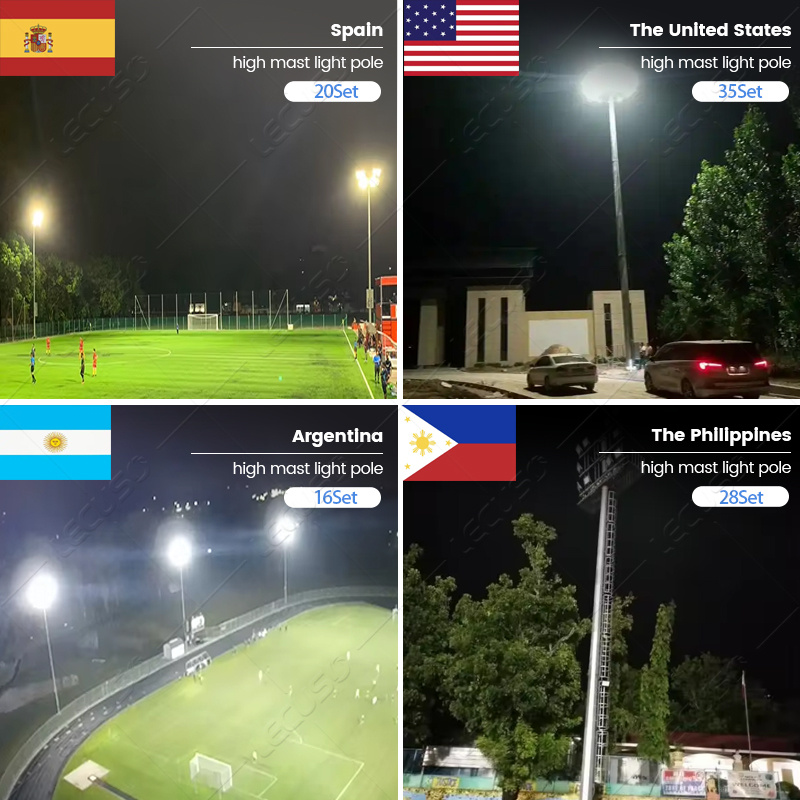

Adaptation to the environment
International hub ports, super-large railway stations, national-level logistics parks, dual-use military and civilian airport aprons and oil storage areas, large industrial parks, logistics and warehousing centers, open-pit mining areas, sports training bases, and other super-large, high-safety-level operation and transportation hubs that have national-level standards for lighting range, brightness uniformity, wind and earthquake resistance, and long-term maintenance-free performance.

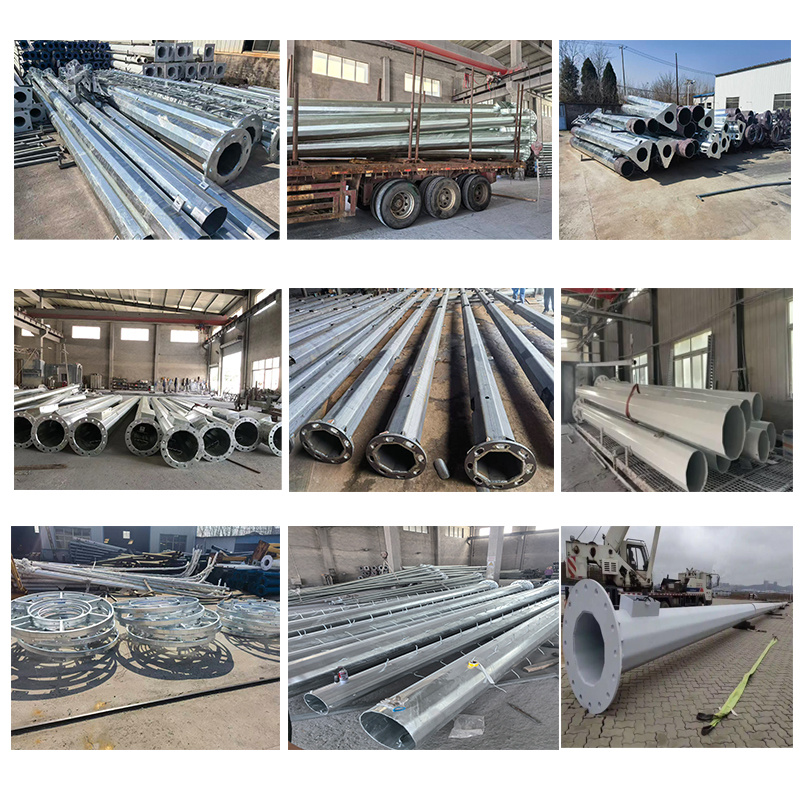

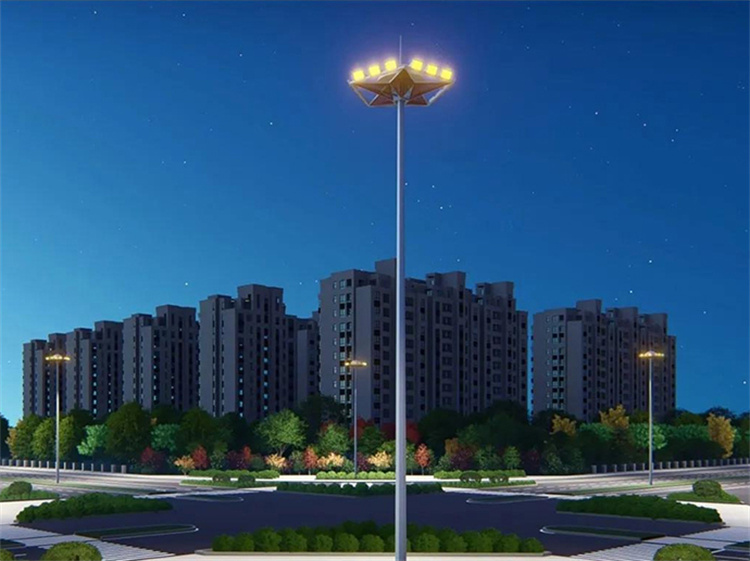

Detail Display
