20FT 30FT 35FT 40FT Hot Dip Galvanized steel Material Electric Pole
Features
1. Ultra-high standard structural safety design:
The rod body is made of high-quality low-silicon carbon structural steel (Q235B/Q355B), and strict mechanical calculations and finite element analyses are carried out to ensure absolute safety under extreme wind loads, ice loads and accidental loads.
The rod body is made of high-quality low-silicon carbon structural steel (Q235B/Q355B), and strict mechanical calculations and finite element analyses are carried out to ensure absolute safety under extreme wind loads, ice loads and accidental loads.
2. Long-lasting anti-corrosion and exquisite surface treatment:
The "double hot-dip galvanizing inside and out" process is implemented, with a zinc layer thickness of ≥86μm (610g/㎡), strong adhesion, ensuring basic anti-corrosion for more than 30 years.
The "double hot-dip galvanizing inside and out" process is implemented, with a zinc layer thickness of ≥86μm (610g/㎡), strong adhesion, ensuring basic anti-corrosion for more than 30 years.
3. Modular design and customizable height:
Offer a variety of rod types to choose from, including conical, polygonal, conical and irregular shapes. The pole body can be preset with standard equipment installation platforms, incoming and outgoing line holes, grounding terminals and internal ladders.
Offer a variety of rod types to choose from, including conical, polygonal, conical and irregular shapes. The pole body can be preset with standard equipment installation platforms, incoming and outgoing line holes, grounding terminals and internal ladders.
4. Internal wiring space and safety maintenance design:
The internal passage design of the pole body is reasonable, facilitating the standardized laying and fixation of strong and weak current cables.
The internal passage design of the pole body is reasonable, facilitating the standardized laying and fixation of strong and weak current cables.
5. Full-process quality control and authoritative certification:
From raw materials entering the factory to finished products leaving the factory, full-process quality tracking is implemented. The product can provide weld seam inspection reports and galvanized layer thickness inspection reports issued by third-party authoritative institutions.
From raw materials entering the factory to finished products leaving the factory, full-process quality tracking is implemented. The product can provide weld seam inspection reports and galvanized layer thickness inspection reports issued by third-party authoritative institutions.
Product Parameters
| SPECOFOCATIONS FOR THE ELECTRIC POLE | |||
| Type | Octagonal Galvanized electric steel power pole supplier | ||
| Suit for | Electricity distribution | ||
| Shape | Conoid ,Multi-pyramidal,Columniform,polygonal or conical | ||
| Material | Usually Q355B/A572,minimum yield strength>=355n/mm2 Q235B/A36,minimum yield strength>=235n/mm2 As well as Hot rolled coil from Q460 ,ASTM573 GR65, GR50 ,SS400, SS490, to ST52- | ||
| Torlance of the dimenstion | -0.02 | ||
| Power | 10 KV ~550 KV | ||
| Safety Factor | Safety factor for conducting wine : 8 | ||
| Safety factor for grounding wine : 8 | |||
| Design Load in Kg | 300~ 1000 Kg appliced to 50cm from the to pole | ||
| Marks | Name palte through rivert or glue ,engrave ,emboss as per customer requirement | ||
| Surface treatment | Hot dip galvanized Following ASTM A 123, color polyester power or any other standard by client required | ||
| Joint of Poles | Insert mode,innerflange mode,face to face joint mode | ||
| Design of pole | Against earthquake of 8 grade | ||
| Wind Speed | 160 Km/Hour . 30 m /s | ||
| Minimum yield strength | 355 mpa | ||
| Minimum ultimate tensile strength | 490 mpa | ||
| Max ultimate tensile strength | 620 mpa | ||
| Standard | ISO 9001 | ||
| Length of per section | Within 14m once forming without slip joint | ||
| Welding | We has past flaw testing.Internal and external double welding makes the welding beautiful in shape | ||
| Welding Standard :AWS ( American Welding Society ) D 1.1 | |||
| Thickness | 1 mm to 30 mm | ||
| Production Process | Rew material test → Cuttingj →Molding or bending →Welidng (longitudinal )→Dimension verify →Flange welding→Hole drilling →Calibration → Deburr→Galvanization or powder coating ,painting →Recalibration →Thread →Packages | ||
| Packages | Our poles as normal cover by Mat or straw bale at the top and bottom ,anyway also can following by client required , each 40HC or OT can loading how many pcs will calculation base on the client actually specification and data | ||
| HEIGHT | TOP DIAMERTER(MM) | BOTTON DIAMERTER(MM) | THICKNESS(MM) |
| 25FT | 120 | 152 | 2.5 |
| 30FT | 127 | 226 | 3 |
| 30FT | 127 | 226 | 2.75 |
| 35FT | 127 | 248 | 3 |
| 35FT | 127 | 248 | 2.75 |
| 40FT | 127 | 317 | 3 |
| 45FT | 127 | 317 | 3 |
Adaptation to the environment
Permanent municipal lighting and power supply projects for urban main roads, community streets, industrial parks, parking lots, key scenic areas, large squares, etc., which have extremely high requirements for structural safety, durability and aesthetic coordination, as well as conventional power and lighting support projects that focus on cost-effectiveness and long-term reliability.

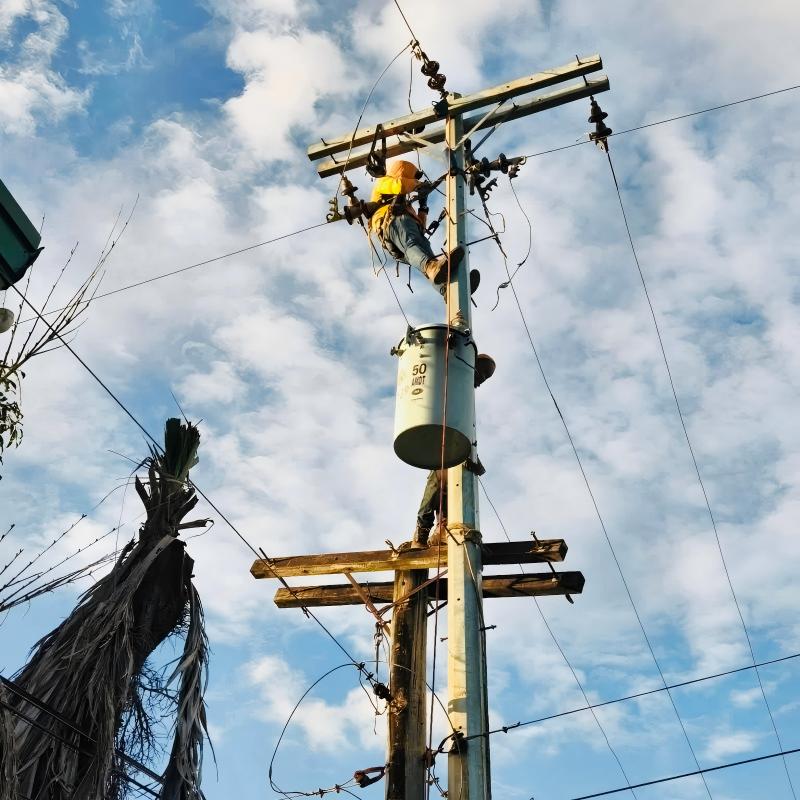

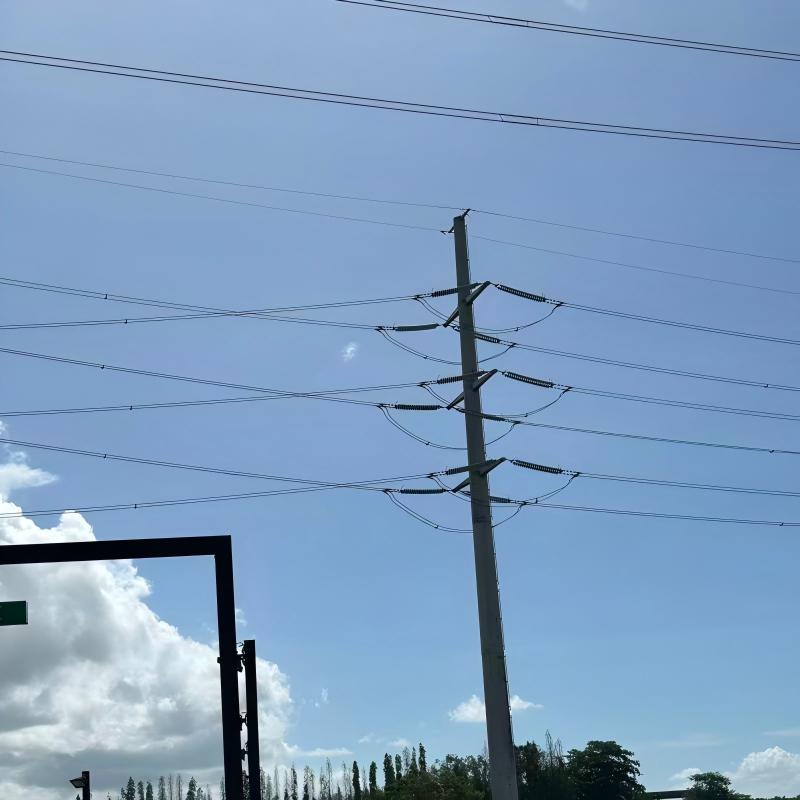

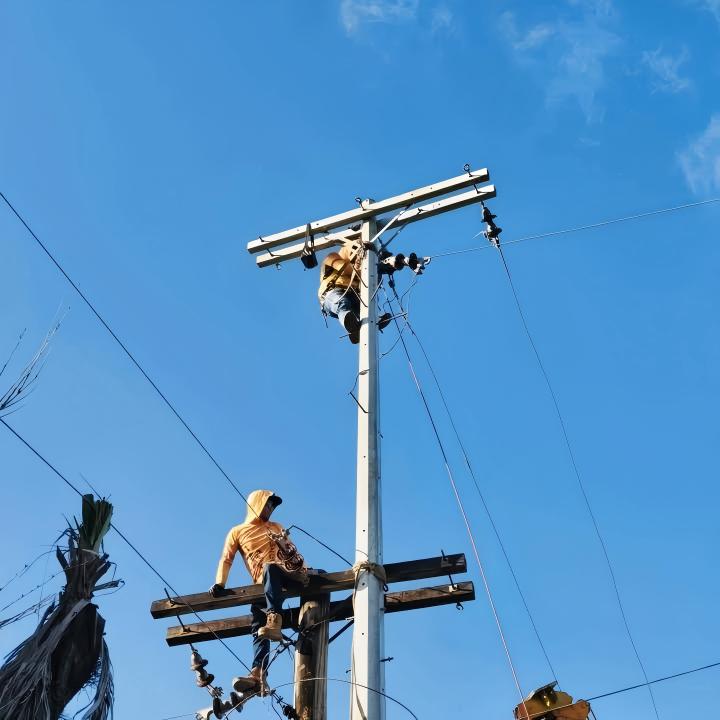

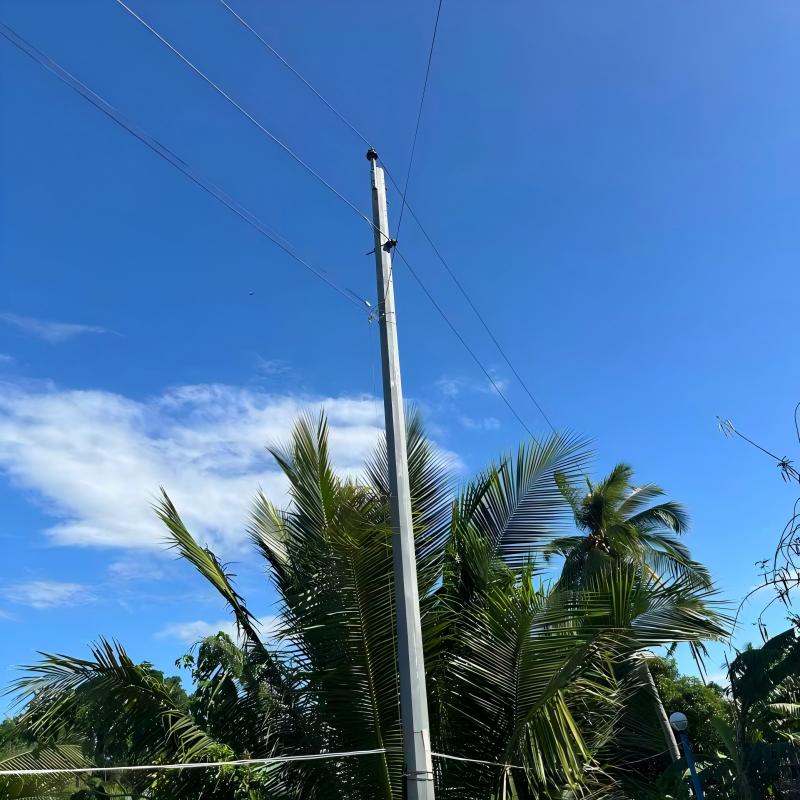

Detail Display
