3M-15M Street Lighting Pole Competitive Price Hot Dip Galvanized Steel Lamp Post and Aluminum Profile Light Pole
Features
1. Customized design, high cost performance: The conical steel rod structure is customized according to customer requirements. The core specifications such as the rod body diameter, wall thickness, and flange size are all serialized and personalized designed, taking into account both production efficiency and cost control, and meeting the cost requirements of different procurement scales.
2. Professional anti-corrosion treatment, durable: The pole body first undergoes standardized pretreatment processes such as acid washing and phosphating to remove impurities and rust, and then is processed by a fully automatic hot-dip galvanizing production line. The galvanized layer has strong adhesion and uniform coverage, reducing later maintenance costs.
3. Stable structure and convenient installation: The overall structure and connection method have been optimized, and custom flanges and installation accessories are provided. The on-site installation process is simple and does not require complex professional tools, improving construction efficiency.
4. Universal interface and strong adaptability: The lamp arm interface adopts a humanized design, perfectly compatible with mainstream lamp installation methods such as clamp type and plug-in type on the market, meeting the lighting fixture matching requirements of different scenarios, combining practicality and flexibility.
5. Mature supply chain and stable supply: Relying on a highly standardized product system and large-scale production capacity, the production cycle is significantly shortened and the inventory turnover efficiency is improved.
Product Parameters
| Recommended Configurations | |
| Poles height | 3m to 40m |
| Shape | Round conical; Octagonal tapered; Straight square; Tubular stepped;Shafts are made of steel sheet that folded into required shape and welded longitudinally by automaticarc welding machine |
| Material | Q235,Q345,Iron,Stell,Aluminum |
| Brackets/ Arm | Single or double brackets/ arm are in the shape and dimension as per customers requirement |
| Welding | It has past flaw testing.Internal and external double welding makes the welding beautiful in shape.And confirms with international welding standard of CWB,BS EN15614 |
| Thickness | 1.8mm-20mm |
| surface treatment | Hot dip galvanization with thickness of 80-100m average in accordance with Chinese standard GB/T 13912-2002 or American standard ASTM A123, IS: 2626-1985.BS EN ISO 1461 |
| Base plate mounted | Base plate is square or round in shape with slotted holes for anchor bolt and dimension as per customers requirement. |
| Wind resistance | Customized,according to customer's environment |
| Powder coating | Pure polyester powder painting, color is optional according to RAL Color stardand. |
| Customized/Design Service | Offered |
| Product | Upper/Bottom(MM) | THK(MM) | Flange(MM) | Basic(MM) |
| 6M Pole | 70/135 | 2.75 | 260*12 | 60MM*18 |
| 6M Bent Arm Pole | 58/145 | 2.75 | 260*12 | 60MM*18 |
| 7M Pole | 70/150 | 2.75 | 260*12 | 70MM*18 |
| 7M Bent Arm Pole | 58/160 | 2.75 | 300*12 | 70MM*18 |
| 8M Pole | 70/158 | 3 | 300*12 | 75MM*18 |
| 8M Bent Arm Pole | 58/160 | 3 | 300*12 | 75MM*18 |
| 9M Pole | 80/185 | 3.25 | 320*14 | 80MM*20 |
| 9M Bent Arm Pole | 58/170 | 3.25 | 320*14 | 80MM*20 |
| 10M Pole | 78/185 | 3.5 | 350*16 | 85MM*22 |
| 10M Bent Arm Pole | 58/190 | 3.5 | 350*16 | 85MM*22 |
| 11M Pole | 80/200 | 3.5 | 400*18 | 95MM*22 |
| 11M Bent Arm Pole | 58/190 | 3.5 | 400*18 | 95MM*22 |
| 12M Pole | 80/215 | 3.5 | 400*18 | 95MM*22 |
| 12M Bent Arm Pole | 60/205 | 3.5 | 400*18 | 95MM*22 |
Adaptation to the environment
This type of lamp post is suitable for a wide range of scenarios and can meet the basic lighting needs of new and renovated roads at all levels in urban and rural areas. It is also applicable to various lighting scenarios for people's livelihood, such as internal roads in residential communities, pedestrian areas in campuses, leisure areas in health and wellness communities, lighting belts around hospitals, and urban slow traffic greenways. It can also be deployed in areas such as urban parks, internal road networks of industrial parks, large parking lots, and auxiliary roads of commercial streets where there are certain requirements for lighting quality and pedestrian safety. It is particularly suitable for large-scale and standardized road lighting projects that focus on initial investment costs, delivery speed, and have high requirements for the long-term reliability of the product. It is the preferred supporting product for various municipal, community, and park lighting projects.

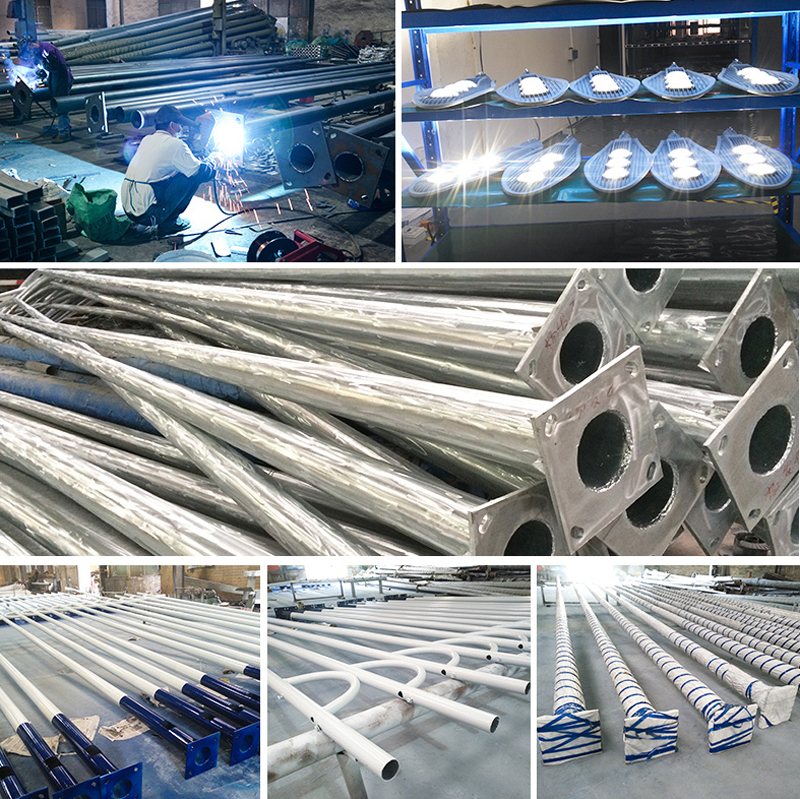

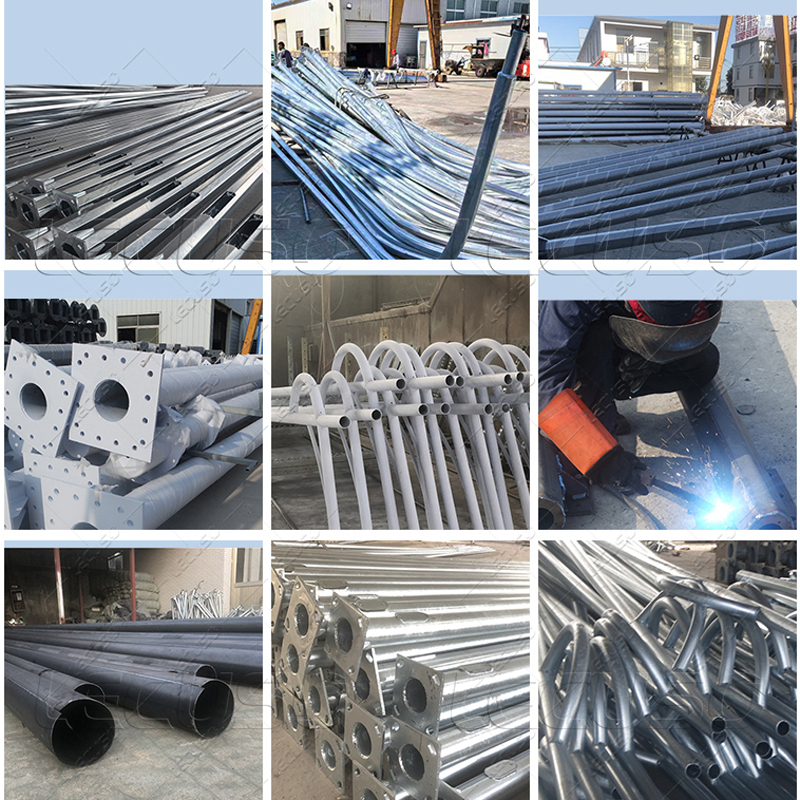

Detail Display
Inquire Now!
We are committed to providing you with the highest quality products and excellent services. If you have any questions or need assistance with our products, please feel free to contact us and we will be happy to serve you.
