5-year Warranty For 220V 300W IP66 Dimmable Smart City LED Street Lighting
Features
1.High-efficiency energy saving & long lifespan
Advanced energy-saving SMD LED chips with a service life of up to 60,000 hours, cutting down replacement and maintenance costs significantly.
Advanced energy-saving SMD LED chips with a service life of up to 60,000 hours, cutting down replacement and maintenance costs significantly.
2.Scientific & uniform light distribution
Adopts customized asymmetrical optical lenses, realizing targeted light projection along roads, eliminating glare and improving night driving and walking safety.
Adopts customized asymmetrical optical lenses, realizing targeted light projection along roads, eliminating glare and improving night driving and walking safety.
3.Top-tier environmental protection
Full-sealed one-piece shell design reaches IP66 dustproof and waterproof grade, resistant to heavy rain, extreme heat, frost and sand dust for all-weather use.
Full-sealed one-piece shell design reaches IP66 dustproof and waterproof grade, resistant to heavy rain, extreme heat, frost and sand dust for all-weather use.

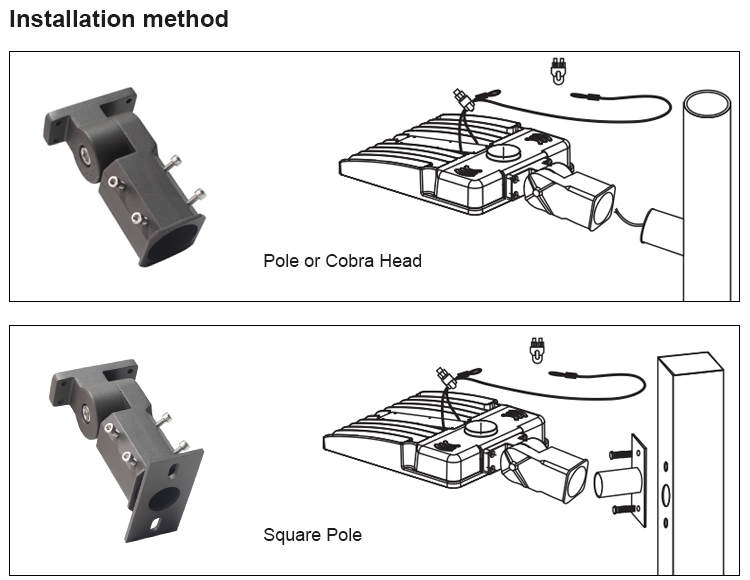

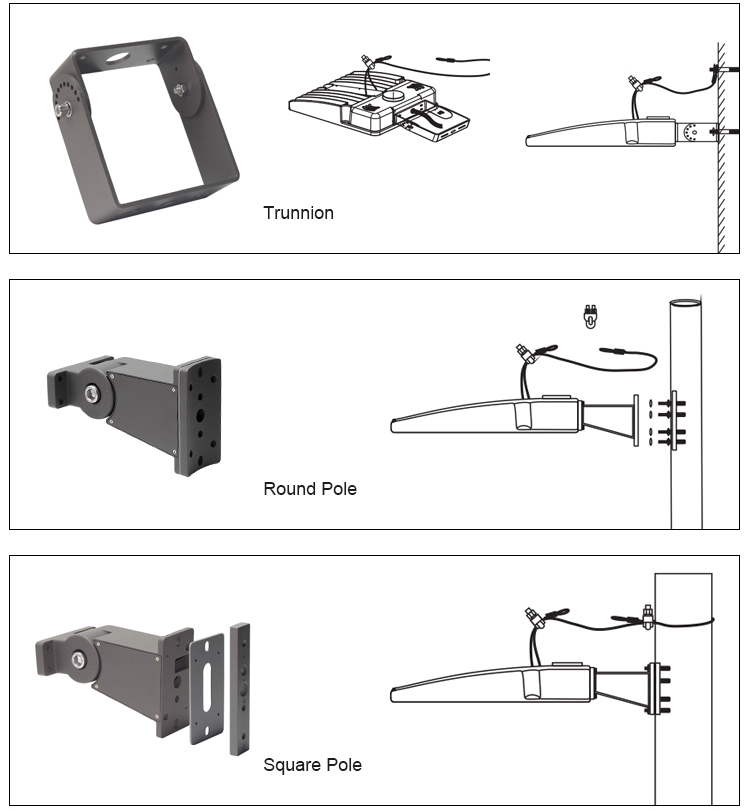

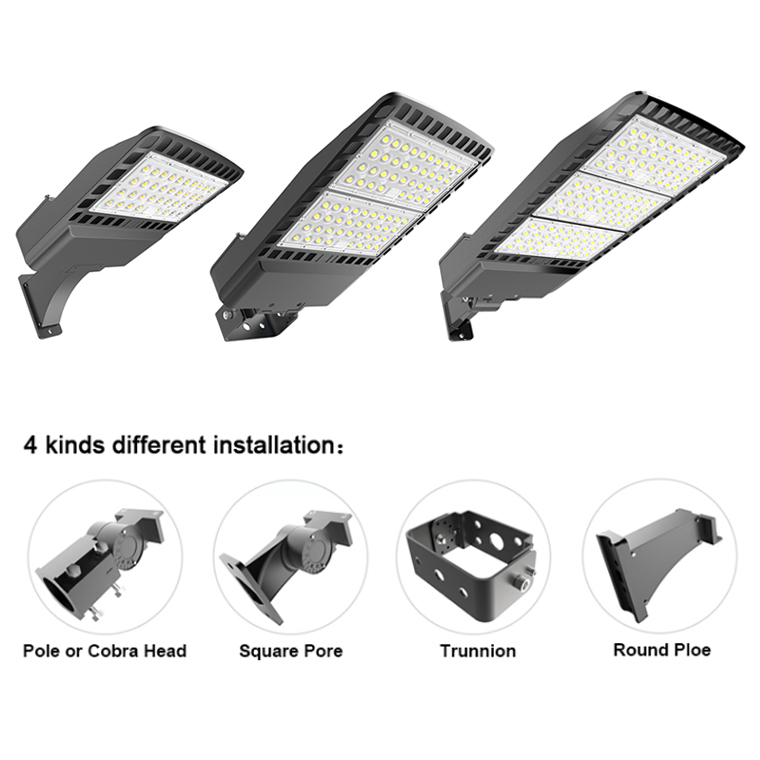

4.Flexible & convenient installation
Lightweight high-strength aluminium lamp body matches a 360° adjustable mounting bracket, supporting pole, wall and arm mounting for diverse installation needs.
Lightweight high-strength aluminium lamp body matches a 360° adjustable mounting bracket, supporting pole, wall and arm mounting for diverse installation needs.
5.Eco-friendly & safe operation
Conforms to global LED lighting safety and environmental standards, no mercury or harmful radiation, achieving zero pollution and low carbon emission.
Conforms to global LED lighting safety and environmental standards, no mercury or harmful radiation, achieving zero pollution and low carbon emission.

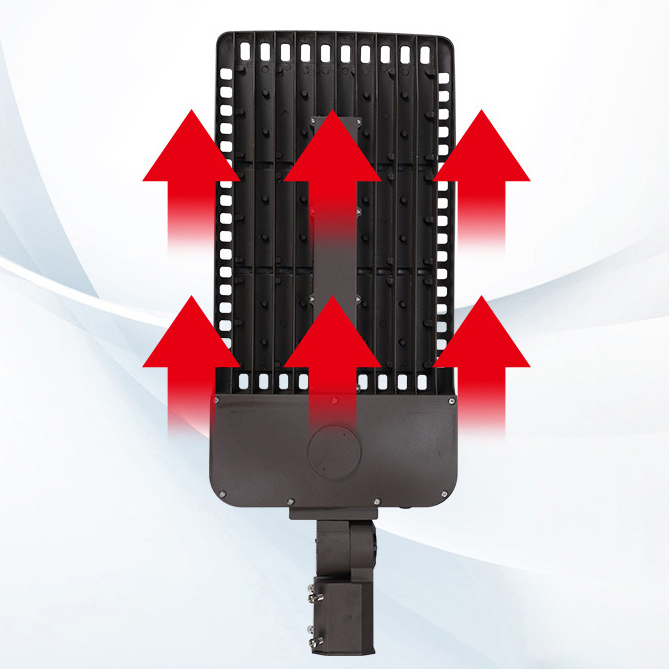

6.Efficient heat dissipation & stable performance
Integral die-cast aluminium heat sink with hollowed design accelerates heat conduction, avoiding light decay caused by overheating and ensuring long-term stable work.
Integral die-cast aluminium heat sink with hollowed design accelerates heat conduction, avoiding light decay caused by overheating and ensuring long-term stable work.
Product Parameters
| Model No |
LCS-XH-50W |
LCS-XH-60W |
LCS-XH-100W |
LCS-XH-150W |
LCS-XH-200W |
| LED Power |
50W |
60W |
100W |
150W |
200W |
| product size |
520*210*110mm |
520*210*110mm |
650*250*95mm |
700*300*95mm |
860*360*200mm |
| Lumen effect |
6000LM |
7200LM |
12000LM |
18000LM |
24000LM |
| Material |
Die-casting aluminum+PC lens |
||||
| CRI |
Ra>80 |
||||
| Led Driver |
LECUSO Isolated Driver or Meanwell Driver Options |
||||
| Power factor |
0.95 |
||||
| IP Rating |
IP66 |
||||
| Warranty |
3/5 Years |
||||
Adaptation to the environment
Suitable for lighting of urban trunk roads, branch roads, ring roads and rural township highways; Applicable to public lighting in residential quarters, school campuses, urban parks, commercial squares and industrial and mining areas; Ideal for parking lots, scenic spot trails, logistics park roads and municipal greenway lighting; Also perfectly fits the road lighting and auxiliary area illumination of outdoor transportation hubs like railway stations, bus terminals and container ports.
