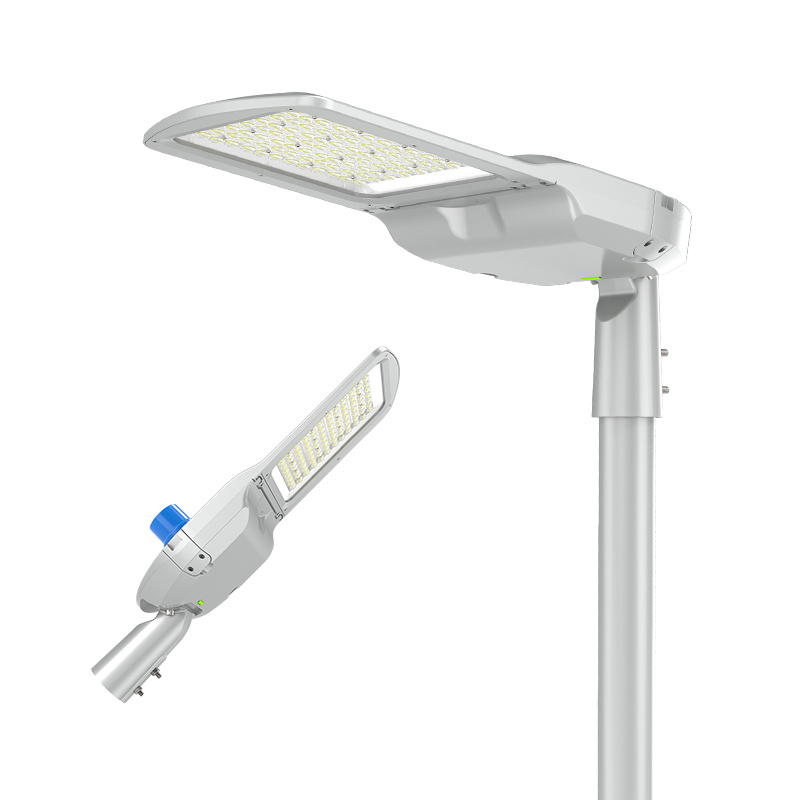

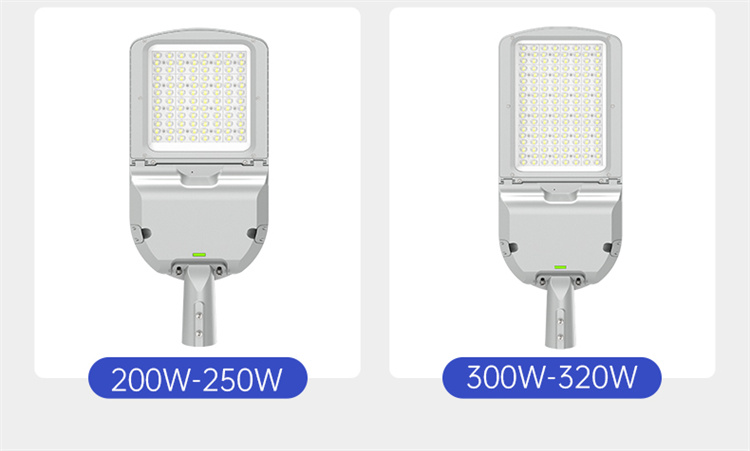

5years Warranty 100W 150W 200W 300W Smart LED Street Light
Features

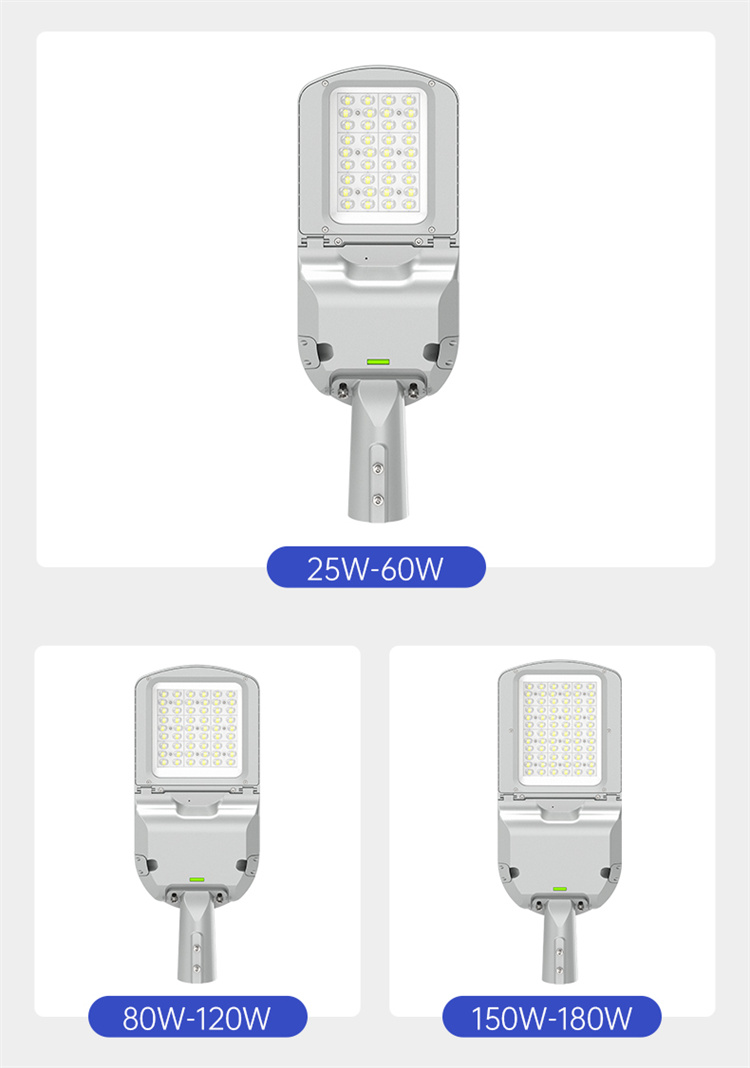

1. 5 sizes with wide power range 30w-320w
2.High luminous efficacy ( What’s luminous efficacy? ) up to 140 lm/W
3. Both horizontal and vertical installation are supported

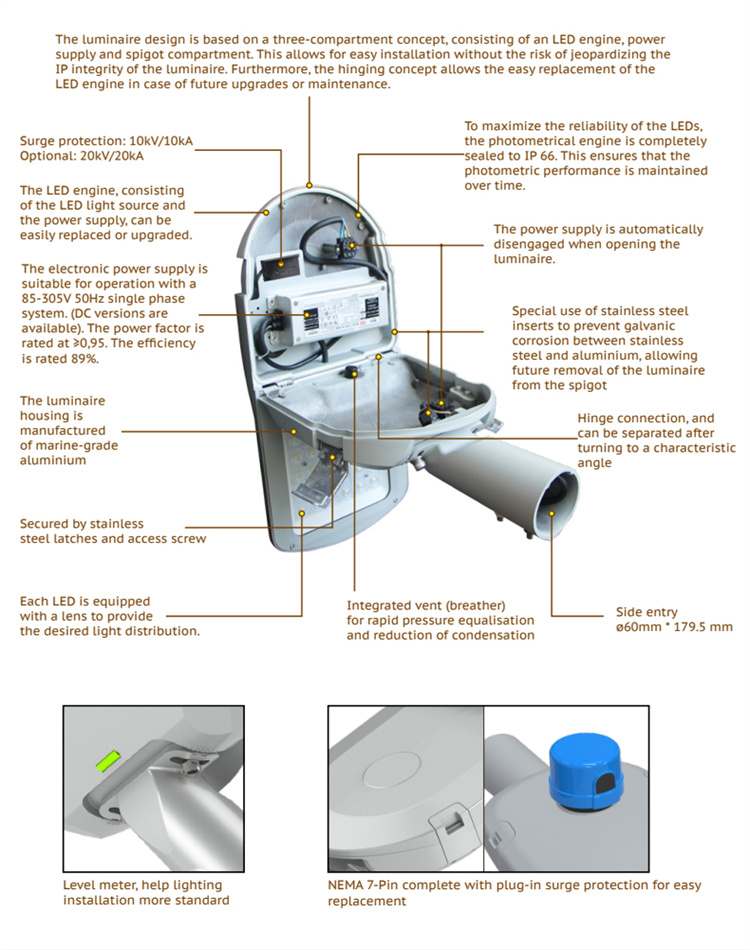

4. Tool-less design for easy maintenance
5. Unique spring latch pin design for easy replacement

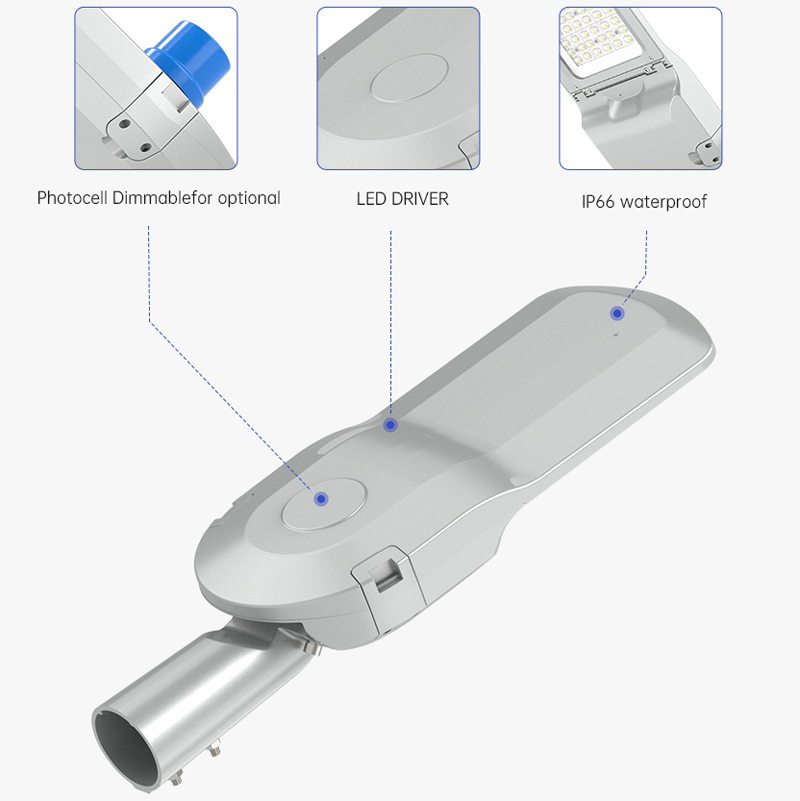

6.Can be with NEMA socket (3/5/7pins) and ZHAGA socket ( What’s NEMA and Zhaga? ) for smart control Photocell, motion sensor, NTC, or OLC as per request
Product Parameters
| Product Mode | HF50 | HF100 | HF120 | HF150 | HF200 | HF250 | HF300 |
| Power | 50W | 100W | 120W | 150W | 200W | 250W | 300W |
| LED Chips | PHILIPS/CREE/BRIDGELUX SMD 3030/5050 | ||||||
| 3030Chips LUMEN Output | 6000LM | 12000LM | 14400LM | 18000LM | 24000LM | 30000LM | 36000LM |
| 5050Chips LUMEN Output | 7000LM | 14000LM | 16800LM | 21000LM | 28000LM | 35000LM | 42000LM |
| Waterproof | IP66 | ||||||
| Surge Protection | 10KV (Default) / 20KV (available on request) with IEC61643-11 | ||||||
| Color Temperature | 3000K/4000K/5000K/6000K/6500K | ||||||

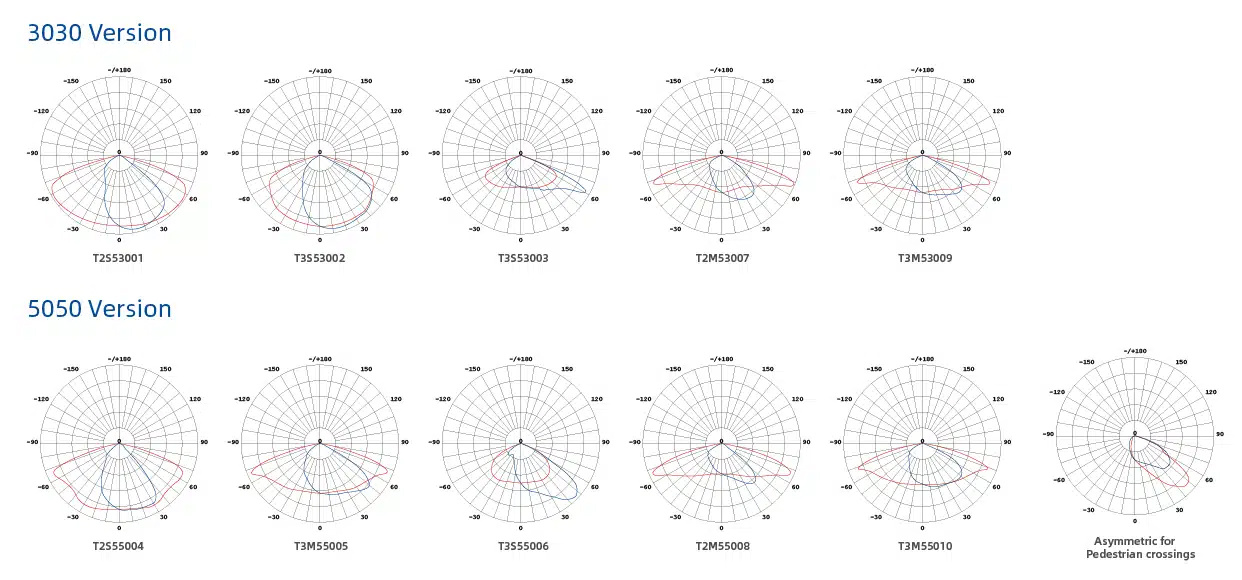

| Beam Angle | Type II, Type III, Asymmetric for pedestrian crossings | ||||||
| CRI | >70/80 | ||||||
| VOLTAGE | 100-240/277 VAC, 50 / 60 Hz | ||||||
| DIM | 0-10V/1-10V | ||||||
| Control | NEMA socket (3/5/7pins), ZHAGA socket, Short cap, Photocell, Motion sensor, NTC, OLC, Solar Compatible, Smart Controller | ||||||
| Warranty | 5 Years | ||||||

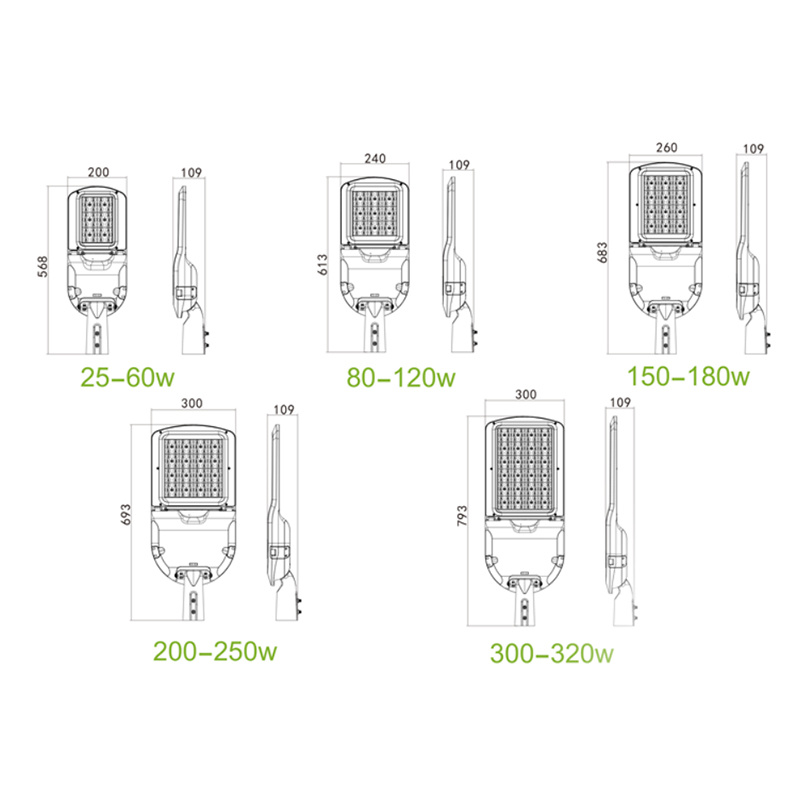

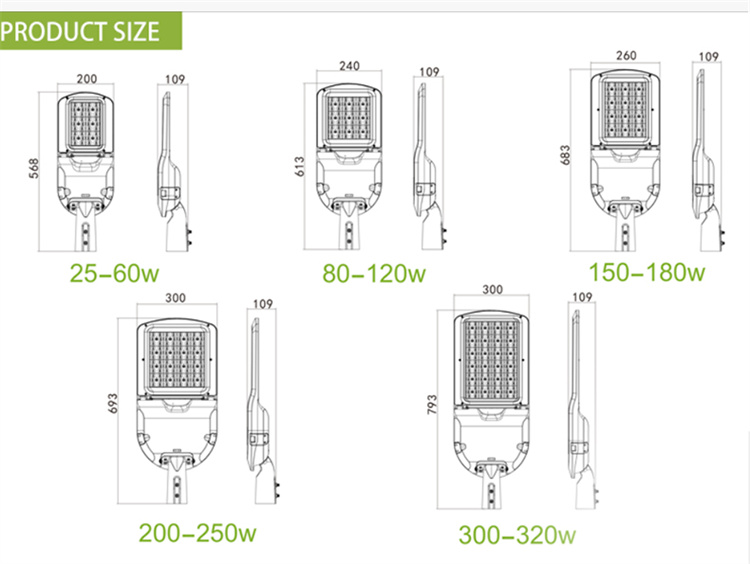

| SIZE(MM) | 568*200*109 | 613*240*109 | 683*240*109 | 683*240*109 | 693*300*109 | 693*300*109 | 793*300*109 |
Adaptation to the environment
Through standardized and large-scale production, highly competitive product prices have been achieved. A perfect quality control system ensures the consistency of product performance when purchasing in large quantities, making it an ideal choice for city-wide and county-wide energy-saving renovation projects of street lamps. Conventional municipal lighting projects that are adapted to the needs of large-scale energy-saving renovations or new constructions on urban arterial roads, regional roads, etc., and focus on long-term reliability and comprehensive economic benefits.

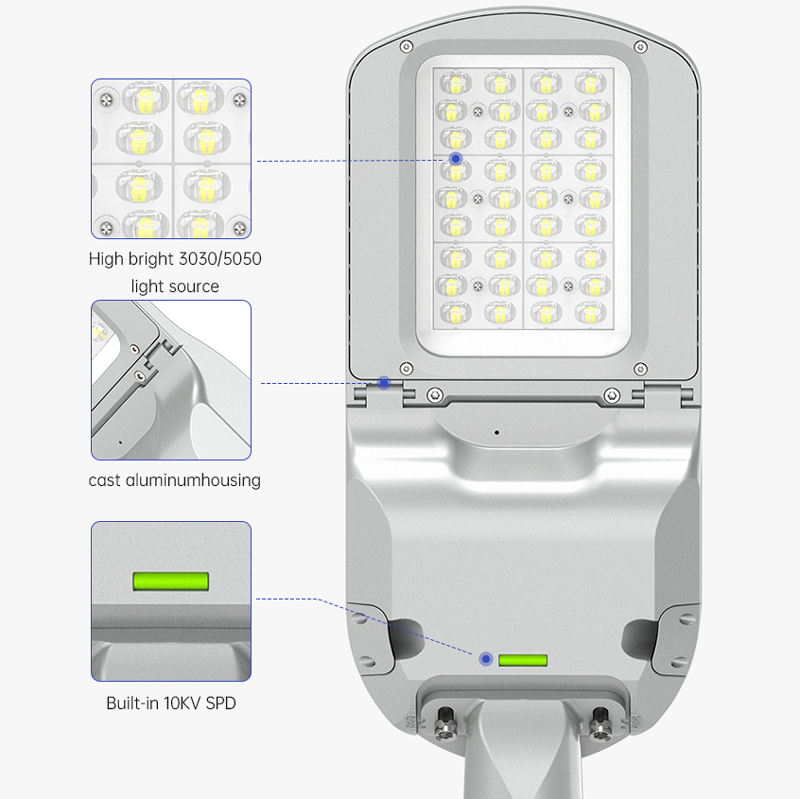

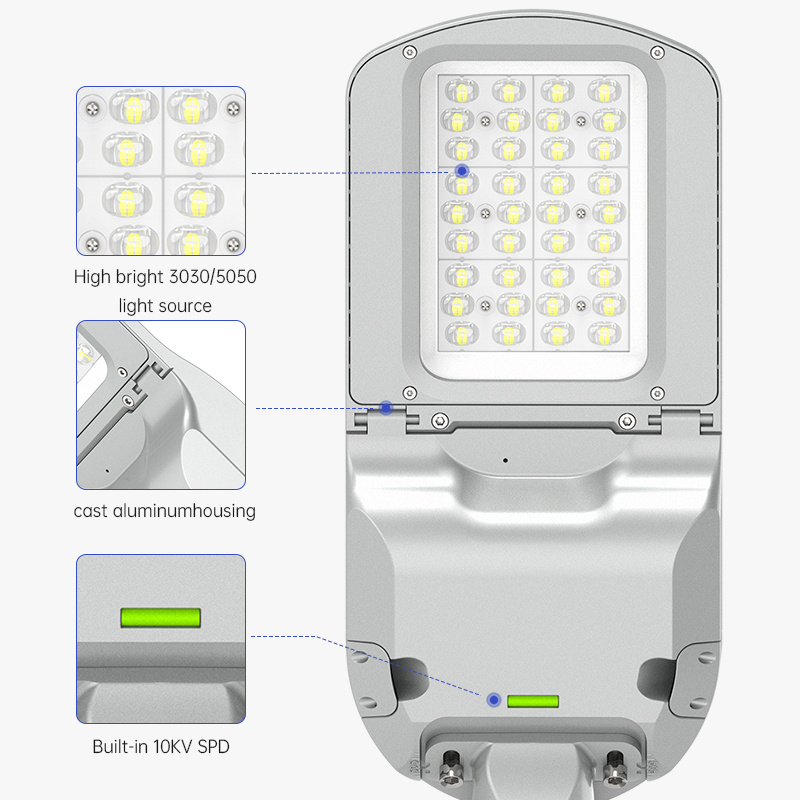

Detail Display
