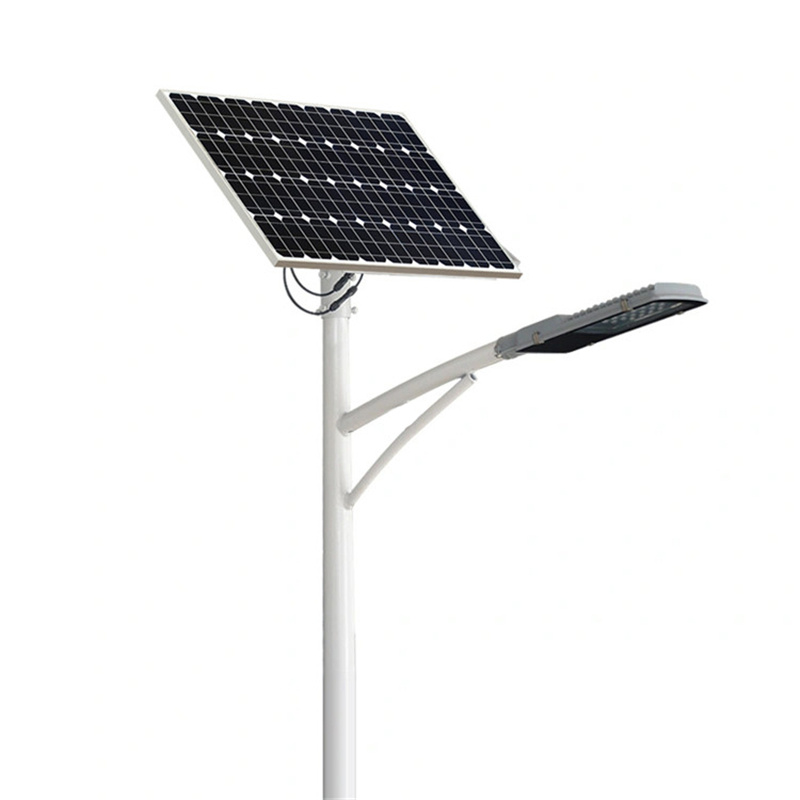

6M 30W Solar Street Light Outdoor Road Lamp
Company Advantage
With over 25 years of expertise in renewable energy, we are a leading integrated manufacturer and custom design provider of solar lighting solutions, specializing in all-in-one solar street lights, solar garden lights, LED flood lights and complete solar power supply systems. Our strict quality control and industry-leading manufacturing capabilities have earned us authoritative certifications including ISO9001:2015, CE, ROHS, IEC61215, TUV Rheinland and SASO, ensuring full compliance with international quality and safety standards for global markets.
Core Features of Our Solar Street Lights
✅ 12-Year Long Lifespan
High-density LiFePO4 batteries support 3000+ deep charge-discharge cycles, far exceeding industry averages.
High-density LiFePO4 batteries support 3000+ deep charge-discharge cycles, far exceeding industry averages.
✅ 5+ Rainy Day Operation
Upgraded MPPT controller & large-capacity storage ensure stable lighting in low-light, harsh weather.
Upgraded MPPT controller & large-capacity storage ensure stable lighting in low-light, harsh weather.
✅ 4 Intelligent Lighting Modes
Motion + light + time control modes for auto dimming/brightening, maximizing energy savings.
Motion + light + time control modes for auto dimming/brightening, maximizing energy savings.
✅ IP66 Waterproof & Easy Install
Thickened die-cast aluminum housing, one-person installation in 15 mins with no complex wiring.
Thickened die-cast aluminum housing, one-person installation in 15 mins with no complex wiring.
✅ Auto Dusk-to-Dawn Sensor
Anti-glare photosensitive sensor for fully automatic operation, realizing unmanned intelligent management.
Anti-glare photosensitive sensor for fully automatic operation, realizing unmanned intelligent management.
✅ 150 lm/W High Luminous Efficiency
Original Philips/Cree 3030 LED chips (CRI≥80), low light decay (3% after 10,000h).
Original Philips/Cree 3030 LED chips (CRI≥80), low light decay (3% after 10,000h).
✅ 23.5%+ High-Efficiency Solar Panels
Monocrystalline panels with 30-year lifespan & 25-year power generation warranty, high-efficiency energy collection.
Monocrystalline panels with 30-year lifespan & 25-year power generation warranty, high-efficiency energy collection.
Product Parameters

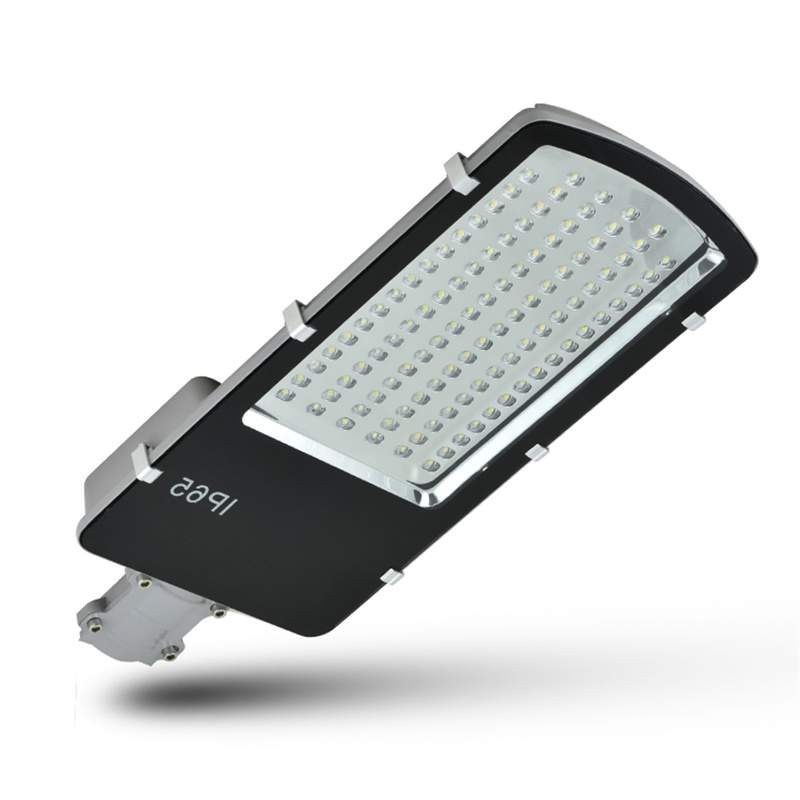

| PIC | Item | 30W |
|
Power | 30w |
| LED Chip | Cree/Bridgelux/Philips Brand | |
| Light Efficiency | >120lm/w-140Lm/w | |
| CCT | 3000-6500K | |
| Viewing Angle | 120° | |
| IP | 65 | |
| Working Environment: | 30℃~+70℃ | |
| PIC | Item | Mono Solar Panel |
|
Power | 100w |
| Efficiency of solar cells | >18% | |
| Maximum power voltage | 18.9v | |
| Maximum circult voltage | 5.33A | |
| Open circult voltage | 22.68 | |
| Short circult current | 5.56 | |

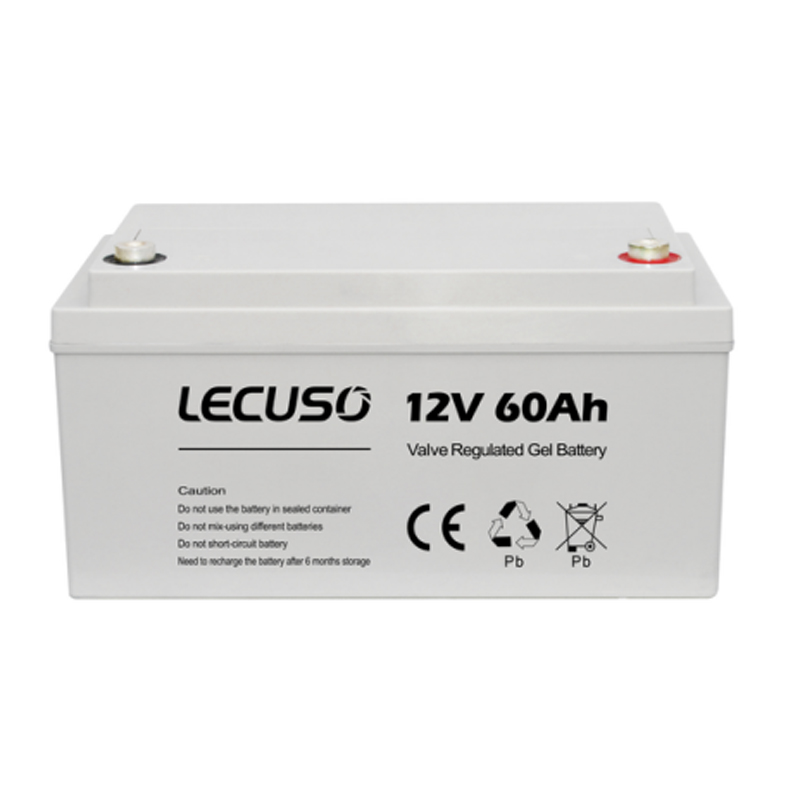

| PIC | Item | Gel Battery |
 |
Rated Voltage | 12v |
| Rated Capacity | 60AH | |
| Terminal | Cable（2.5mm²×2 m） | |
| Maximum Charge Current | 10A | |
| Case | ABS | |
| Warranty | 3Years | |
| PIC | Item | Lithium Battery |
|
Rated Voltage | 24v |
| Rated Capacity | 120AH 3072WH | |
| Terminal | Cable（2.5mm²×2 m） | |
| Maximum Charge Current | 10A | |
| Case | Aluminium/Steel | |
| Warranty | 3Years | |
| PIC | Item | Solar Controller |
|
Rated working voltage | 10A |
| Max. charging current | 10A | |
| levels of protection | IP67 | |
| Maximum Charge Current | 10A | |
| Constant current efficiency | 96% | |
| Output voltage range | Max panel/ 12V 100WP solar panel | |
| Warranty | 3years | |
| PIC | Item | 6M Street light pole |
|
Material | Q235 Steel |
| Diameter | 60/160mm | |
| Thickness | 3.0mm | |
| Light Arm | 1.5M | |
| Base plate | 280*280*12mm | |
| Anchor Bolt | 4-M16-500mm | |
| Surface Treatment | Hot dip galvanized+ Powder Coating | |
| Warranty | 20years |
Detail Display
