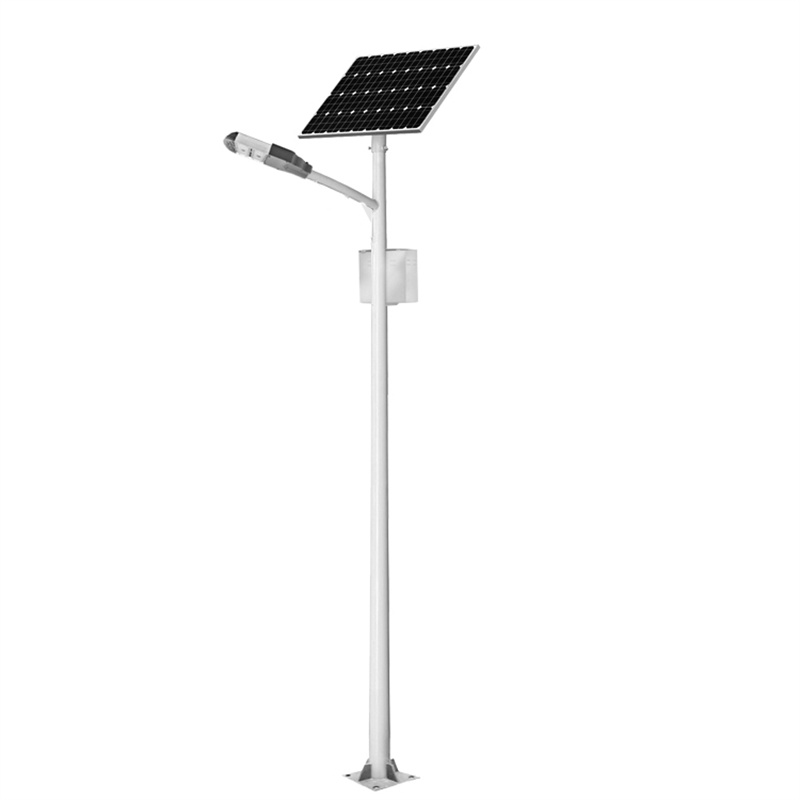

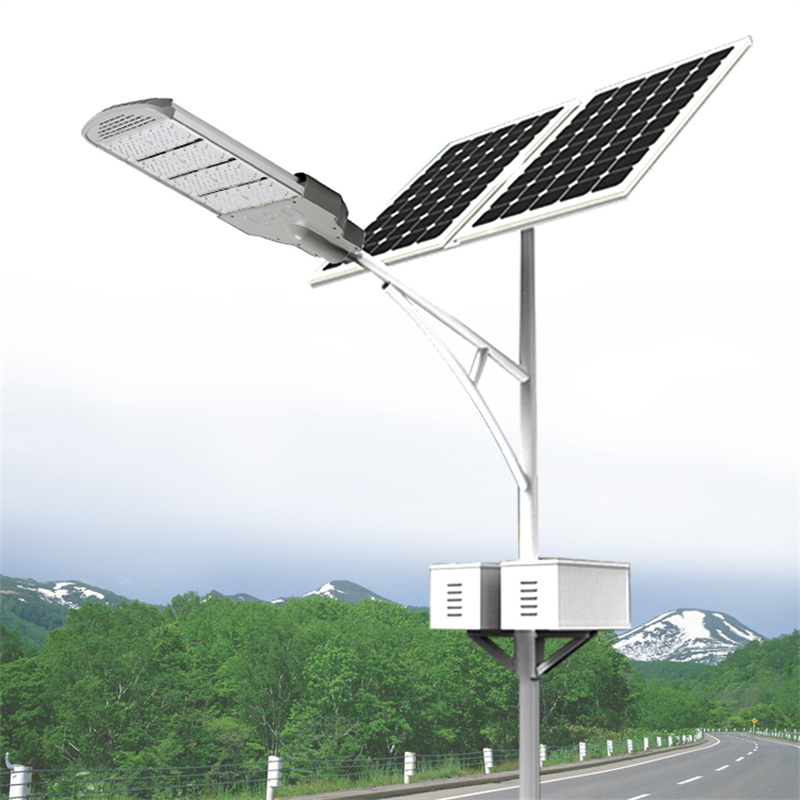

8M 60W Separate Solar Street Light with pole and gel battery
Company Advantage
Our solar street lights are built for robust, all-scenario outdoor performance, with core features designed for efficiency, durability and adaptability:
✅ Full-Night High Brightness – Low-consumption high-power LEDs deliver non-stop, glare-free high brightness from dusk to dawn, meeting all outdoor lighting demands.
✅ -40°C to 70°C Extreme Temperature Resistance – Industrial gel batteries with anti-leakage design, ultra-low failure rate for stable operation in harsh climates.
✅ 120°-150° Ultra-Wide Lighting Angle – Uniform shadow-free coverage, customizable angles, reduces project lamp deployment costs.
✅ 12+ Days Long Autonomy – 3-7 nights basic full-charge operation, 12+ days for overcast/rainy weather; optional polycrystalline panels for low-sunlight areas.
✅ Theft-Proof & Versatile Installation – IP66 waterproof battery case, 3 installation ways (pole-top/pole-hung/underground); buried installation extends battery life in high temps.
All our products pass strict factory and outdoor aging tests, adhering to international top quality standards, providing global customers with long-lasting, energy-efficient and environment-adaptive solar lighting solutions.
Product Parameters
| PIC | Item | 60W led street light |
|
Power | 60w |
| LED Chip | Cree/Bridgelux/Philips Brand | |
| Light Efficiency | >120lm/w-140Lm/w | |
| CCT | 3000-6500K | |
| Viewing Angle | 120° | |
| IP | 65 | |
| Working Environment: | 30℃~+70℃ | |
| PIC | Item | Mono Solar Panel |
|
Power | 150w |
| Efficiency of solar cells | >18% | |
| Maximum power voltage | 18.5v | |
| Maximum circult voltage | 8.11A | |
| Open circult voltage | 22.2 | |
| Short circult current | 8.52 | |
| Size | 1480*680*30mm | |

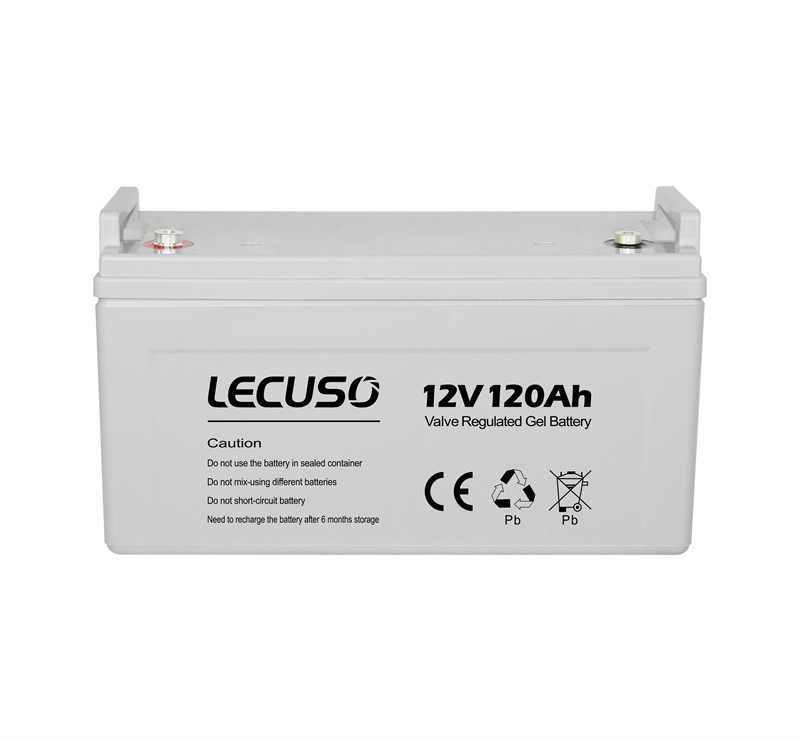

| PIC | Item | Gel Battery |
 |
Rated Voltage | 12v |
| Rated Capacity | 120AH | |
| Terminal | Cable（2.5mm²×2 m） | |
| Maximum Charge Current | 10A | |
| Case | ABS | |
| Warranty | 3Years | |
| Size | 405*173*231mm | |
| PIC | Item | Solar Controller |
 |
Rated working voltage | 15A |
| Max. charging current | 15A | |
| levels of protection | IP67 | |
| Maximum Charge Current | 10A | |
| Constant current efficiency | 96% | |
| Output voltage range | Max panel/ 12V 150WP solar panel | |
| Warranty | 3years | |
| PIC | Item | 8M Street light pole |
|
Material | Q235 Steel |
| Diameter | 80/170mm | |
| Thickness | 3.5mm | |
| Light Arm | 1.5M | |
| Base plate | 320*320*16mm | |
| Anchor Bolt | 4-M18-800mm | |
| Surface Treatment | Hot dip galvanized+ Powder Coating | |
| Warranty | 20years |
