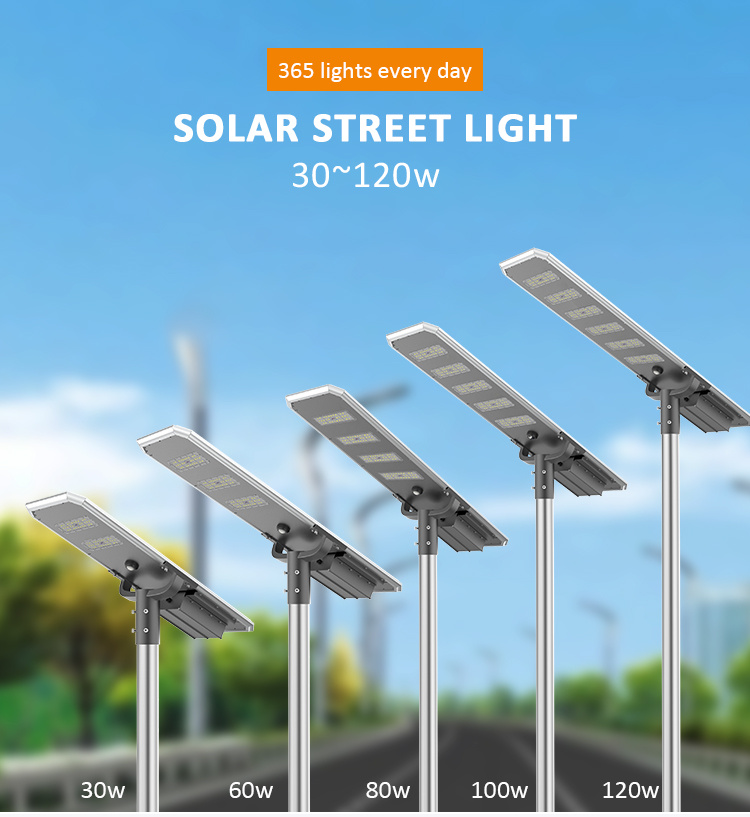

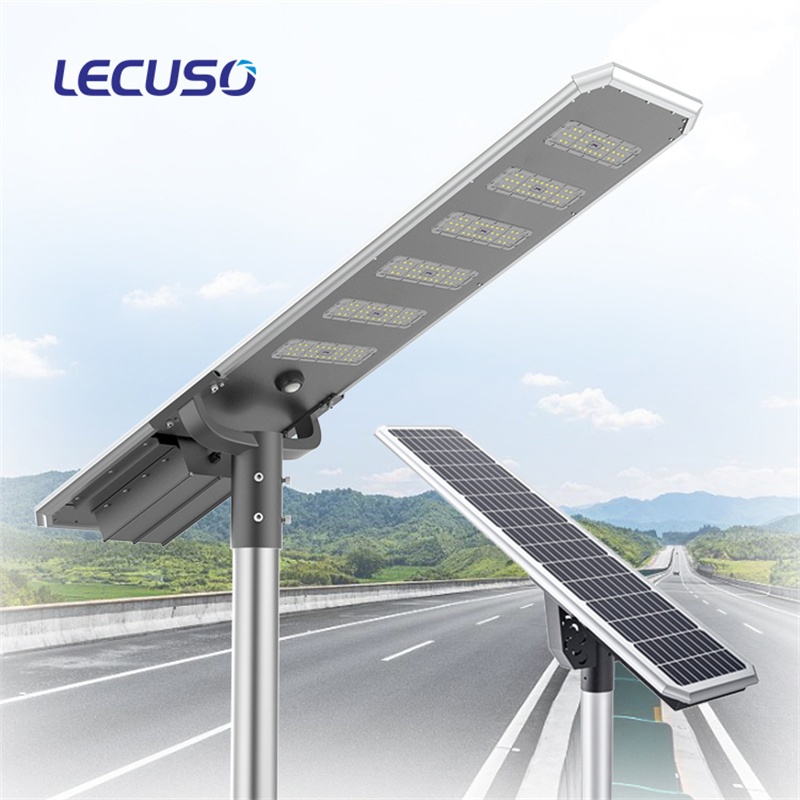

DYM Series 30W 60W 80W 100W 120W 150W Outdoor LED Solar Street Light
Features
1. An integrated design with a source - based, high - capacity LiFePO4 lithium battery is adopted. The battery has a long service life, is lightweight, and is environmentally friendly.

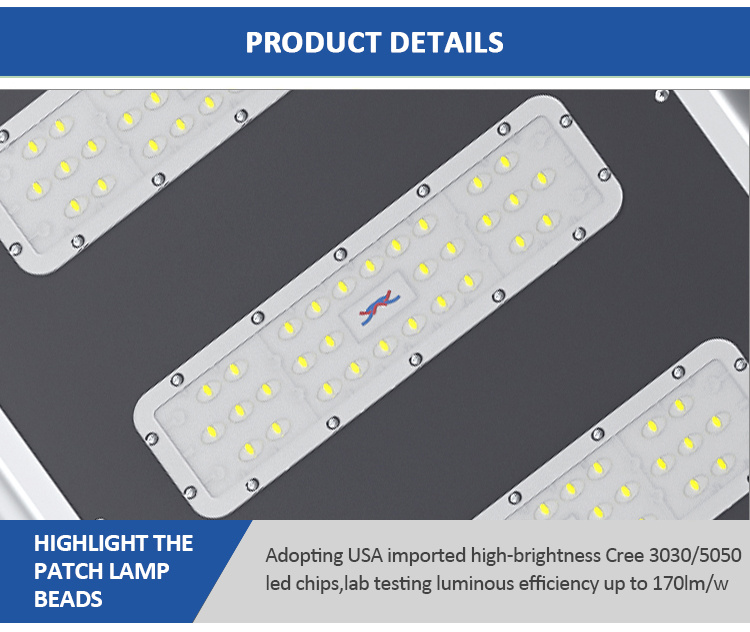

2. Imported LED chips are employed, which are characterized by high luminous efficiency, reaching up to 170LM/W.
3. All series utilize MPPT/PWM controllers, which can enhance the charging efficiency by 15% to 30%.
4. The design incorporates high - efficiency solar cells (efficiency > 22%).
5. Installation and maintenance are convenient, and cable installation is not necessary.
6. The functional components are designed in a modular manner for easy maintenance and rapid replacement.

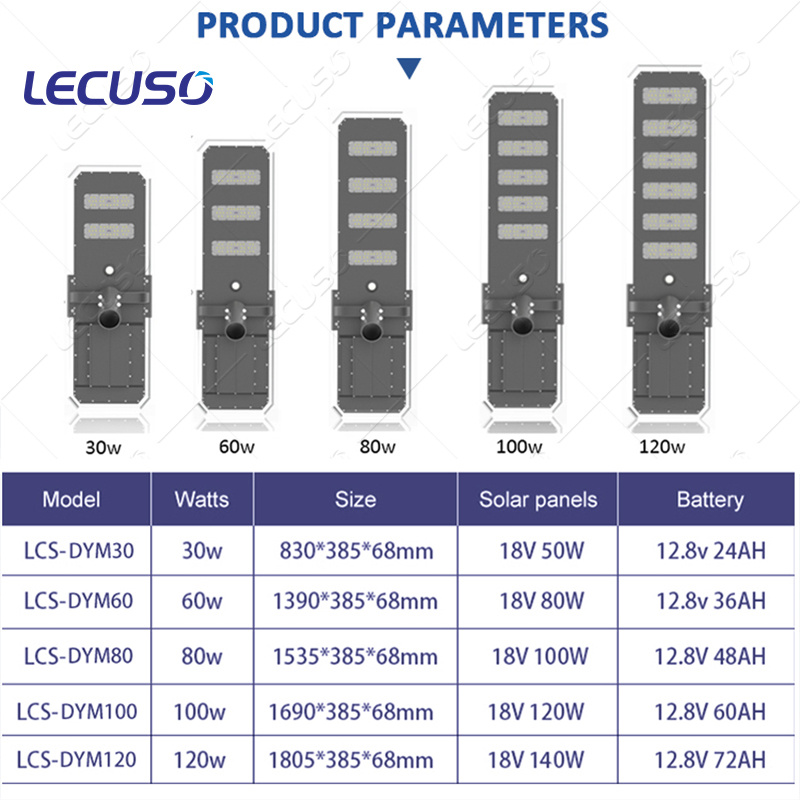

Product Parameters
| Power | 30w | 60w | 80w | 100w | 120w |
| 3030 LED chip | 100PCS | 150PCS | 200PCS | 250PCS | 300PCS |
| Luminous Flux | 5100LM | 10200LM | 13600LM | 17000LM | 20400LM |
| LiFePO4 Battery | 12.8v 24AH | 12.8v 36AH | 12.8V 48AH | 12.8V 60AH | 12.8V 72AH |
| Mono Solar Panel | 18V 50W | 18V 80W | 18V 100W | 18V 120W | 18V 140W |
| Install height | 4-5M | 6-7M | 7-8M | 8-10M | 9-12M |
| Solar charging time | 5-6 hours | ||||

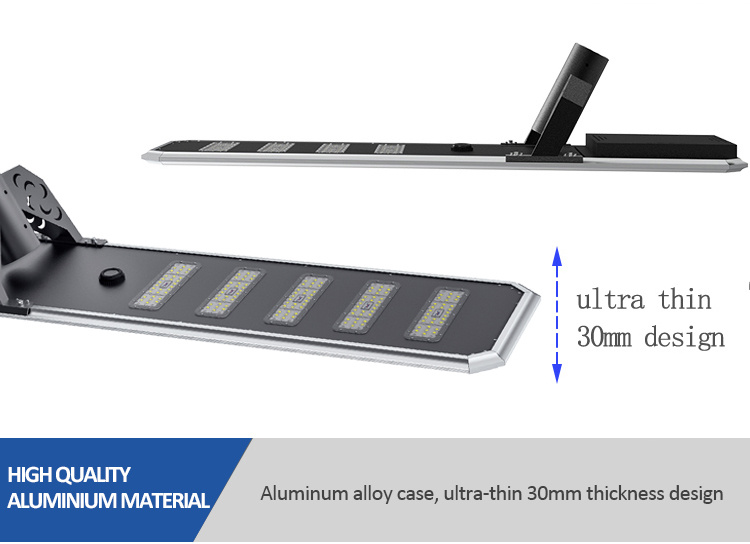

| Material | Aluminum Alloy+ PMMA | ||||

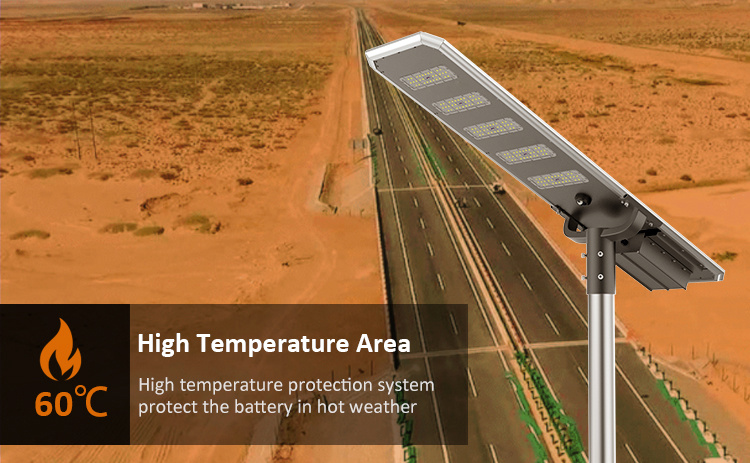

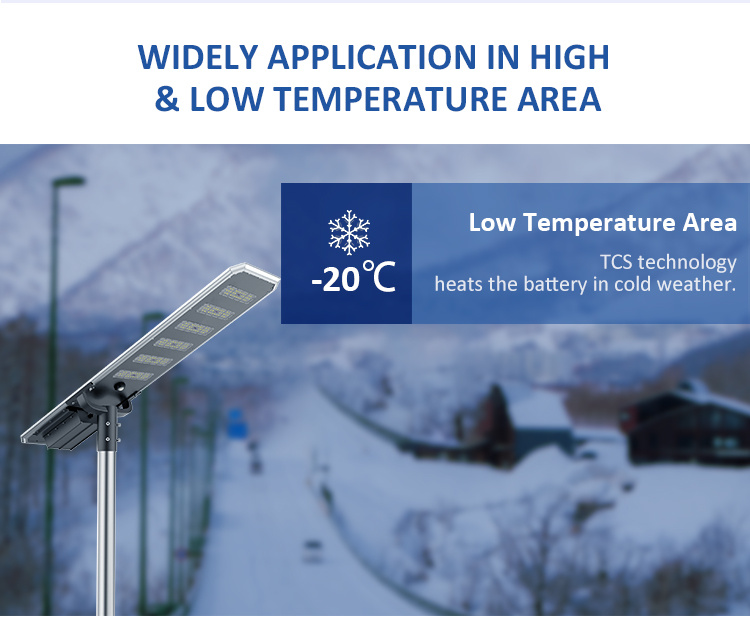

| Work temperature | -25℃ to 65℃ | ||||
| Warranty | 3/5 Years | ||||
Provide uninterrupted lighting for critical infrastructure
The DYM series is the ideal guardian for core scenarios where lighting interruption is absolutely not allowed, such as key hub sections of expressways, buffer zones at the entrances and exits of long tunnels, provincial-level or above emergency shelters, important port loading and unloading areas, and border guard posts. Ignoring the capricious climate, always staying at post, it can stably support full-power lighting for 5 to 7 consecutive rainy days, providing a rock-solid and uninterrupted light guarantee for safety and order.
Detail Display
