6M-12M Hot Dip Galvanized Street Light Pole
Applications
Our street light poles are suitable for a wide range of outdoor lighting projects, including:
• Urban Main Roads
• Secondary Roads & Residential Streets
• Rural Roads & Village Roads
• Highways & Service Areas
• Residential Communities
• Industrial Parks
• Commercial Streets
• Public Squares & Parks
• Parking Lots
• Bus Stations
• Scenic Areas & Walkways
• Municipal Greenways
• Ports & Docks
• Outdoor Public Infrastructure Projects
Designed for Middle East & Southeast Asia
Engineered for demanding outdoor environments, our galvanized steel light poles are ideal for:
• High Temperature Regions
• Desert & Sandy Areas
• Tropical Climate
• Coastal Areas
• High Humidity Environments
• Heavy Rainfall Areas
• Strong Wind Regions
• Urban Infrastructure Projects
• Smart City Developments
• Municipal Road Lighting Projects
Key Benefits
• Hot Dip Galvanized for Long-Term Corrosion Protection
• Strong Wind Resistance
• Durable for Harsh Outdoor Conditions
• Low Maintenance & Long Service Life
• OEM & ODM Customization Available
• Suitable for Government & EPC Projects
Product Parameters
| Recommended Configurations | |
| Poles height | 3m to 40m |
| Shape | Round conical; Octagonal tapered; Straight square; Tubular stepped;Shafts are made of steel sheet that folded into required shape and welded longitudinally by automaticarc welding machine |
| Material | Q235,Q345,Iron,Stell,Aluminum |
| Brackets/ Arm | Single or double brackets/ arm are in the shape and dimension as per customers requirement |
| Welding | It has past flaw testing.Internal and external double welding makes the welding beautiful in shape.And confirms with international welding standard of CWB,BS EN15614 |
| Thickness | 1.8mm-20mm |
| surface treatment | Hot dip galvanization with thickness of 80-100m average in accordance with Chinese standard GB/T 13912-2002 or American standard ASTM A123, IS: 2626-1985.BS EN ISO 1461 |
| Base plate mounted | Base plate is square or round in shape with slotted holes for anchor bolt and dimension as per customers requirement. |
| Wind resistance | Customized,according to customer's environment |
| Powder coating | Pure polyester powder painting, color is optional according to RAL Color stardand. |
| Customized/Design Service | Offered |
| Product | Upper/Bottom(MM) | THK(MM) | Flange(MM) |
| 6M Bent Arm Pole | 60/145 | 2.75 | 260*12 |
| 7M Bent Arm Pole | 60/160 | 2.75 | 300*12 |
| 8M Bent Arm Pole | 60/160 | 3 | 300*12 |
| 9M Bent Arm Pole | 60/170 | 3.25 | 320*14 |
| 10M Bent Arm Pole | 60/190 | 3.5 | 350*16 |
| 11M Bent Arm Pole | 60/190 | 3.5 | 400*18 |
| 12M Bent Arm Pole | 60/205 | 3.5 | 400*18 |
Adaptation to the environment
It is widely applicable to the lighting pole construction of urban main roads, secondary roads, branch roads and rural cement roads, asphalt roads; Matching the lighting facilities of residential communities, campuses, parks, squares, commercial streets and industrial parks; Suitable for parking lots, scenic area walkways, municipal greenways, bus stations and other outdoor public places; Also applicable to the lighting pole installation of port, dock, highway service area and other outdoor transportation hub peripheral roads, adapting to plain, hilly, coastal and other different geographical and climatic outdoor environments.

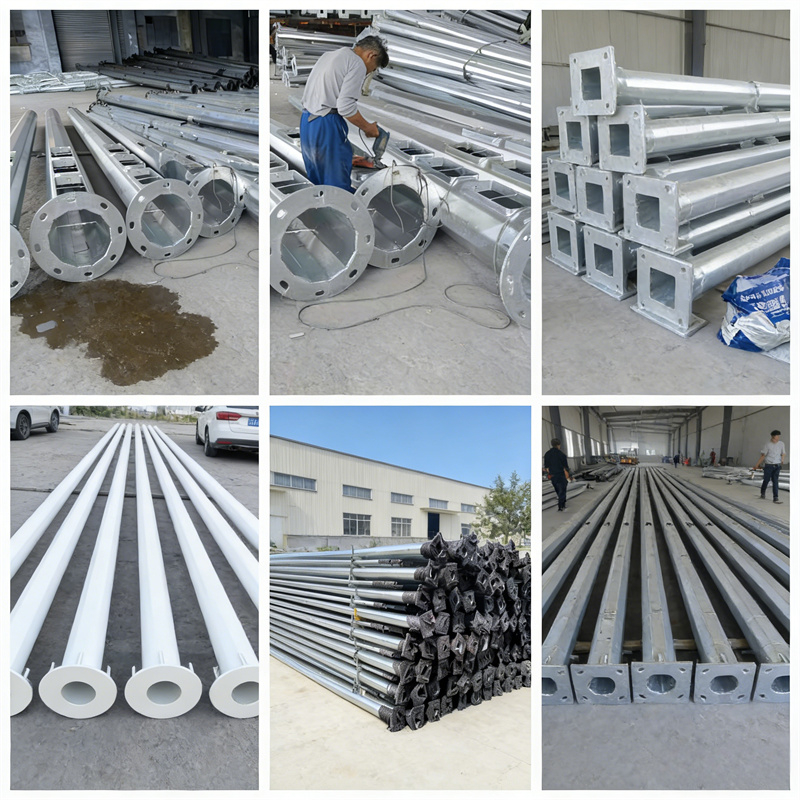

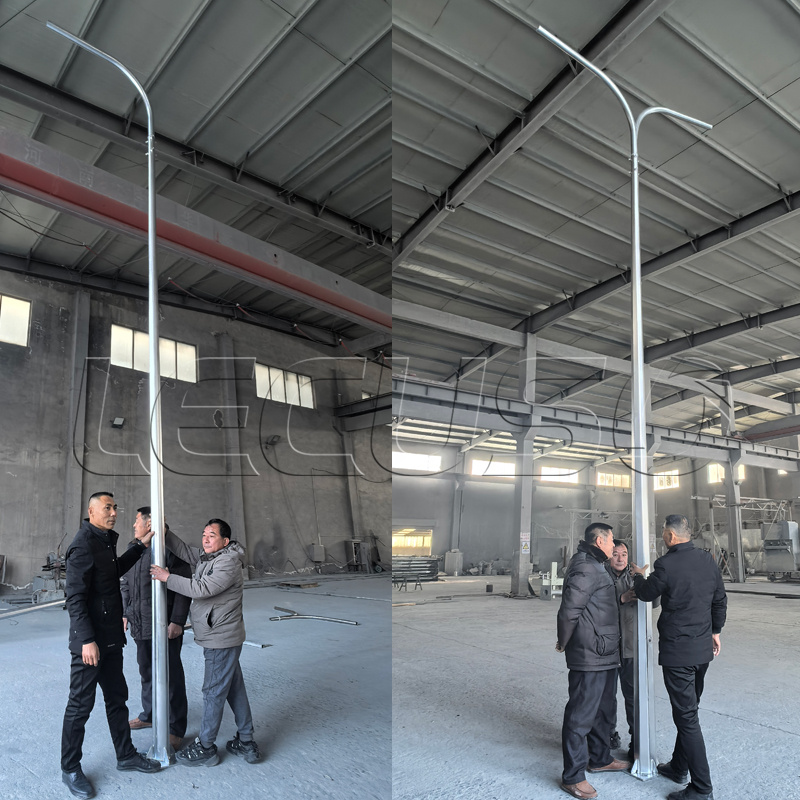

Detail Display
Inquire Now!
We are committed to providing you with the highest quality products and excellent services. If you have any questions or need assistance with our products, please feel free to contact us and we will be happy to serve you.
