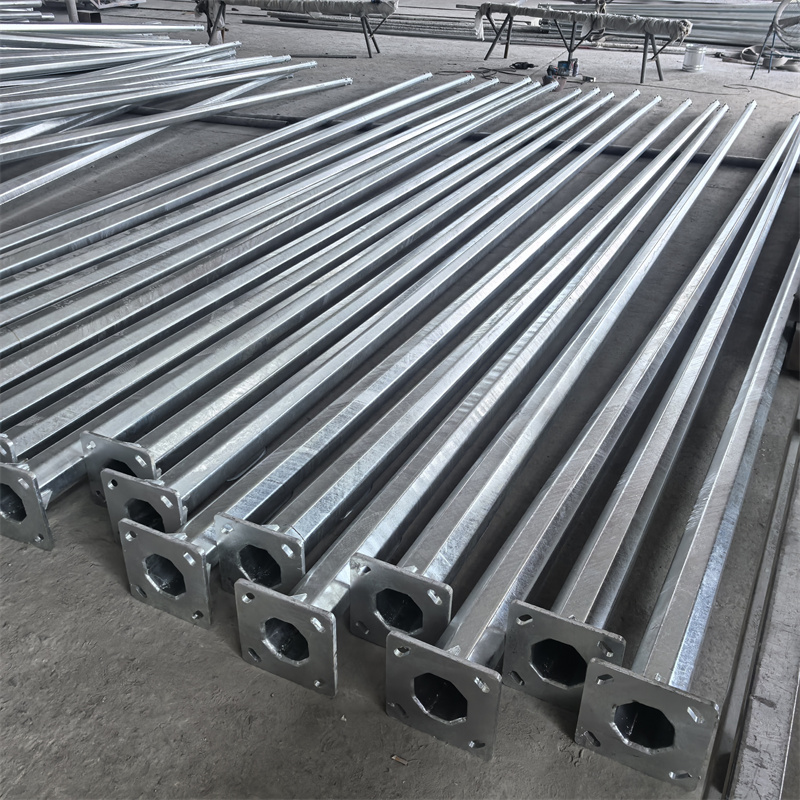

6m-12m Octagonal Street Light Pole
Features
1. Multi-faceted structural design: Octagonal cross-section enhances mechanical strength and wind resistance, making it suitable for use in strong winds and coastal areas.
2. High-strength material structure: The lamp post is made of Q355 grade steel, with controllable wall thickness. It can provide excellent load-bearing capacity and long-term durability even under heavy-duty lamps or dual-arm configurations.
3. Excellent corrosion resistance: Fully hot-dip galvanized both inside and out to prevent moisture, salt spray and industrial pollutants. The zinc coating ensures a maintenance-free service life of over 20 years.
4. Precision forming and seamless processing: Each rod is formed using advanced bending and automatic welding technologies, with a smooth surface, no burrs, and consistent dimensional accuracy.
5. Customizable installation and foundation options: Circular or square base plates, anchor cage systems and hinged access doors are available for easy wiring and maintenance. The height, wall thickness and arm shape of the pole can be customized according to the project specifications.
Product Parameters
| Welding | It has past flaw testing.Internal and external double welding makes the welding beautiful in shape.And confirms with international welding standard of CWB,BS EN15614 |
| Thickness | 1.8mm-20mm |
| surface treatment | Hot dip galvanization with thickness of 80-100m average in accordance with Chinese standard GB/T 13912-2002 or American standard ASTM A123, IS: 2626-1985.BS EN ISO 1461 |
| Base plate mounted | Base plate is square or round in shape with slotted holes for anchor bolt and dimension as per customers requirement. |
| Wind resistance | Customized,according to customer's environment |
| Powder coating | Pure polyester powder painting, color is optional according to RAL Color stardand. |
| Customized/Design Service | Offered |
| Product | Upper/Bottom(MM) | THK(MM) | Flange(MM) |
| 6M Pole | 70/135 | 2.75 | 260*12 |
| 7M Pole | 70/150 | 2.75 | 260*12 |
| 8M Pole | 70/158 | 3 | 300*12 |
| 9M Pole | 80/185 | 3.25 | 320*14 |
| 10M Pole | 78/185 | 3.5 | 350*16 |
| 11M Pole | 80/200 | 3.5 | 400*18 |
| 12M Pole | 80/215 | 3.5 | 400*18 |
Adaptation to the environment
Widely used in highway lighting systems,urban expressways, municipal road renovation projects,large intersections,and roundabouts. Suitable for installation in ports,logistics hubs,industrial zones,and airport peripherals where high structural reliability is required.Also ideal for stadiums, exhibition centers, public squares,and large commercial complexes that demand both functional performance and visual consistency. The octagonal pole performs reliably in diverse environments including coastal regions, mountainous terrain, and extreme weather zones.

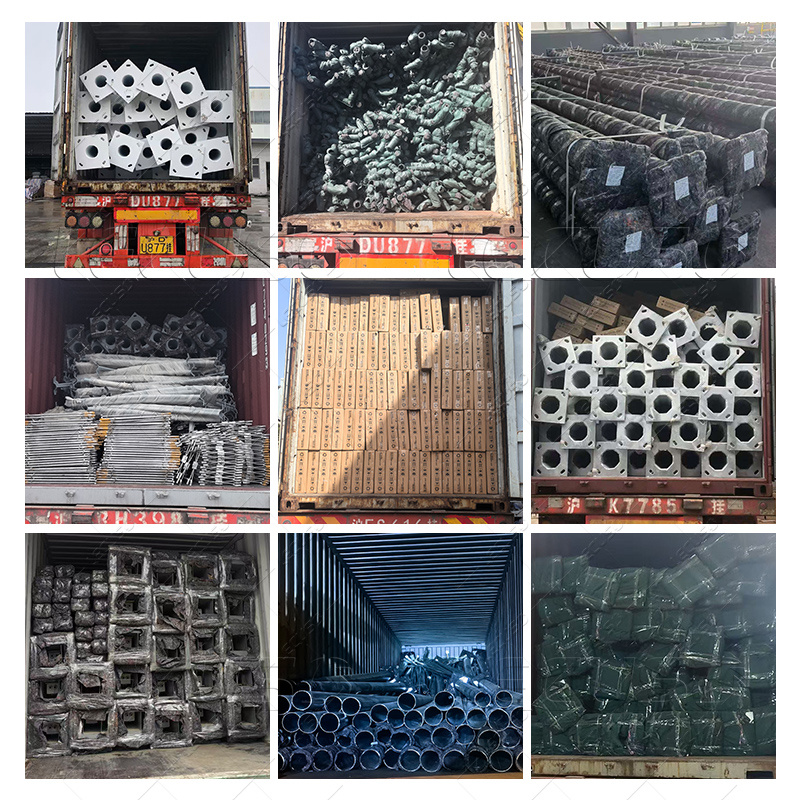

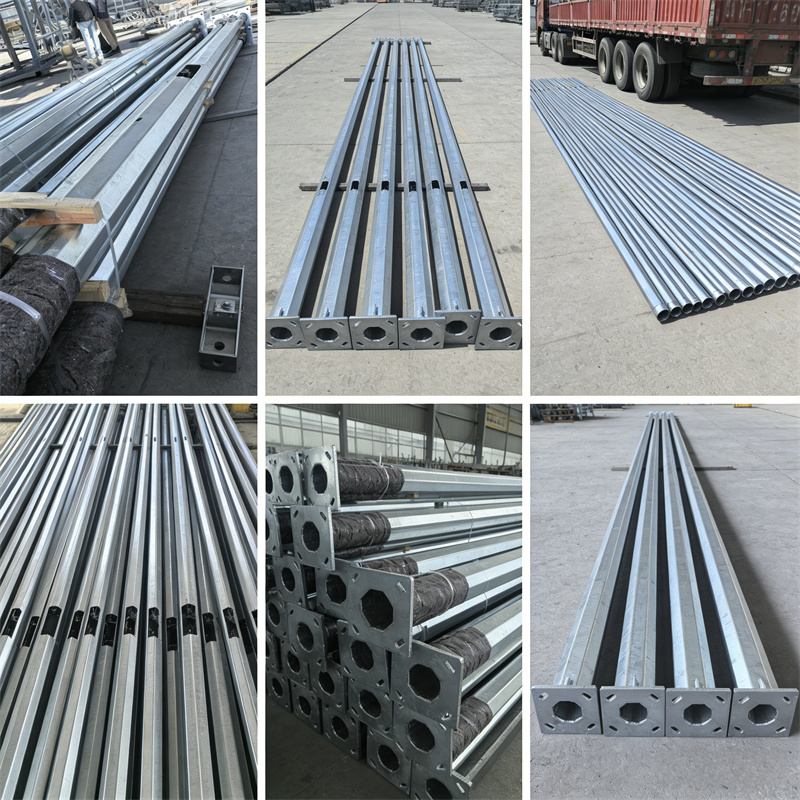

Detail Display
