LECUSO 500W 1000W LED Mid‑pole Flood Light 11M 16M Galvanized Pole Professional Grade Stadium Lighting

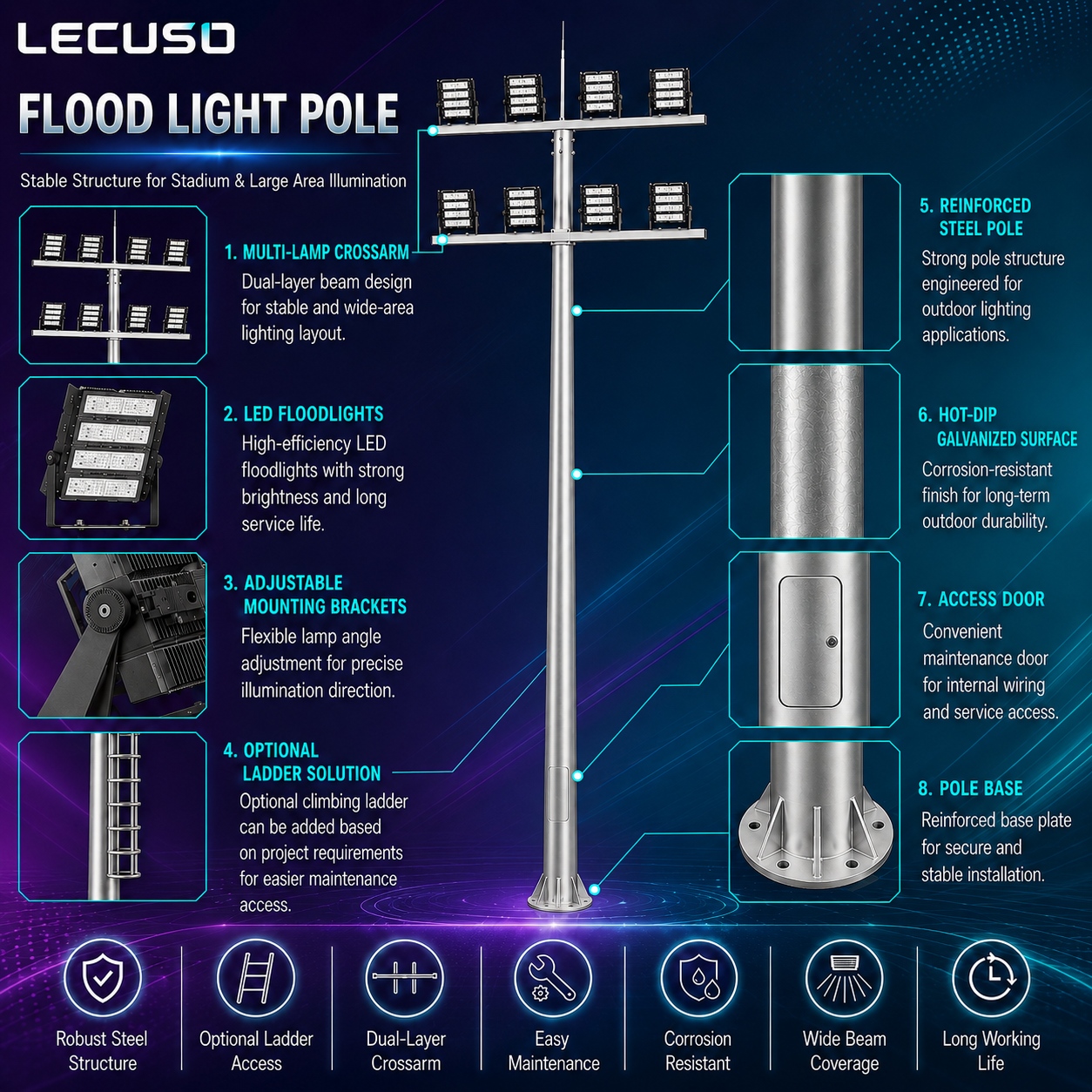

Features
1.Compact robust structure, easy installation
The pole is made of high‑grade steel, formed into a tapered polygonal tube.It uses a plug‑in segmented design for fast on‑site assembly and foundation installation.
2.Advanced anti‑corrosion, long outdoor durability
Full hot‑dip galvanizing inside and out plus electrostatic powder coating provides strong resistance to rain, ensuring stable performance in outdoor environments for many years.
3.Modular high‑efficiency LED system
Equipped with professional LED modules, high luminous efficacy, low decay and stable color temperature.The optical design ensures focused, even illumination with minimal glare, improving visual comfort.
4.Flexible angle adjustment, wide applicability
Lamp bracket supports multi‑angle pitching adjustment to meet different site lighting requirements.Suitable for both general functional lighting and accent lighting for landscape and facilities.
5.Complete electrical safety
Built‑in surge protection, reliable grounding and waterproof cable connections. The system runs safely and stably, with low failure rate and reduced maintenance workload.
6.Flexible customization options
Support custom height, power, beam angle and color. Compatible with optional dimming or intelligent control for energy saving and intelligent management in different scenarios.
Product Parameters
| HEIGHT | DIAMERTER(MM) | THICKNESS(MM) | Base Plate |
| 12m | Top DIA:100 Bottom DIA:200MM | 4mm | 400*20mm |
| 15m | Top DIA:120 Bottom DIA:300MM | 4mm/5mm | 500*20mm |
| 16m | Top DIA:150 Bottom DIA:350MM | 5mm/5mm | 600*20mm |
| 18M | Top DIA:150 Bottom DIA:400MM | 6mm/6mm | 750*20MM |
| 20M | Top DIA:230 Bottom DIA:450MM | 6mm/6mm | 900*20MM |
| Suit for | Airport /seaport /plaza/stadium/square/highway/street way etc | ||
| Shape | Conoid ,Multi-pyramidal,Columniform,polygonal or conical | ||
| Material | Usually Q345B/A572, Q235B/A36,As well as Hot rolled coil from Q460 ,ASTM573 GR65, GR50 ,SS400,SS490. | ||
| Lamp power | 200 W- 2000 W (HPS/MH) 220V (+-10%) /50Hz |
||
| Surface treatment | Hot dip galvanized Following ASTM A 123, color polyester power or any other standard by client required. | ||
| Joint of Poles | Insert mode,innerflange mode,face to face joint mode | ||
| Design of pole | Against earthquake of 8 grade | ||
| Length of per section | Within 14m once forming without slip joint | ||
| Welding | We has past flaw testing.Internal and external double welding makes the welding beautiful in shape Welding Standard :AWS ( American Welding Society ) |
||
| Thickness | 3 mm to 30 mm | ||
| Production Process | Rew material test → Cuttingj →Molding or bending →Welidng (longitudinal )→Dimension verify →Flange welding →Hole drilling →Calibration →Deburr→Galvanization or powder coating ,painting →Recalibration →Thread →Packages | ||
| Packages | Our high Mast Octagonal Steel Pole as normal cover by Mat or straw bale at the top and bottom ,anyway also can following by client required ,each 40HC or OT can loading how many pcs will calculation base on the client actually specification and data. | ||
Adaptation to the environment:

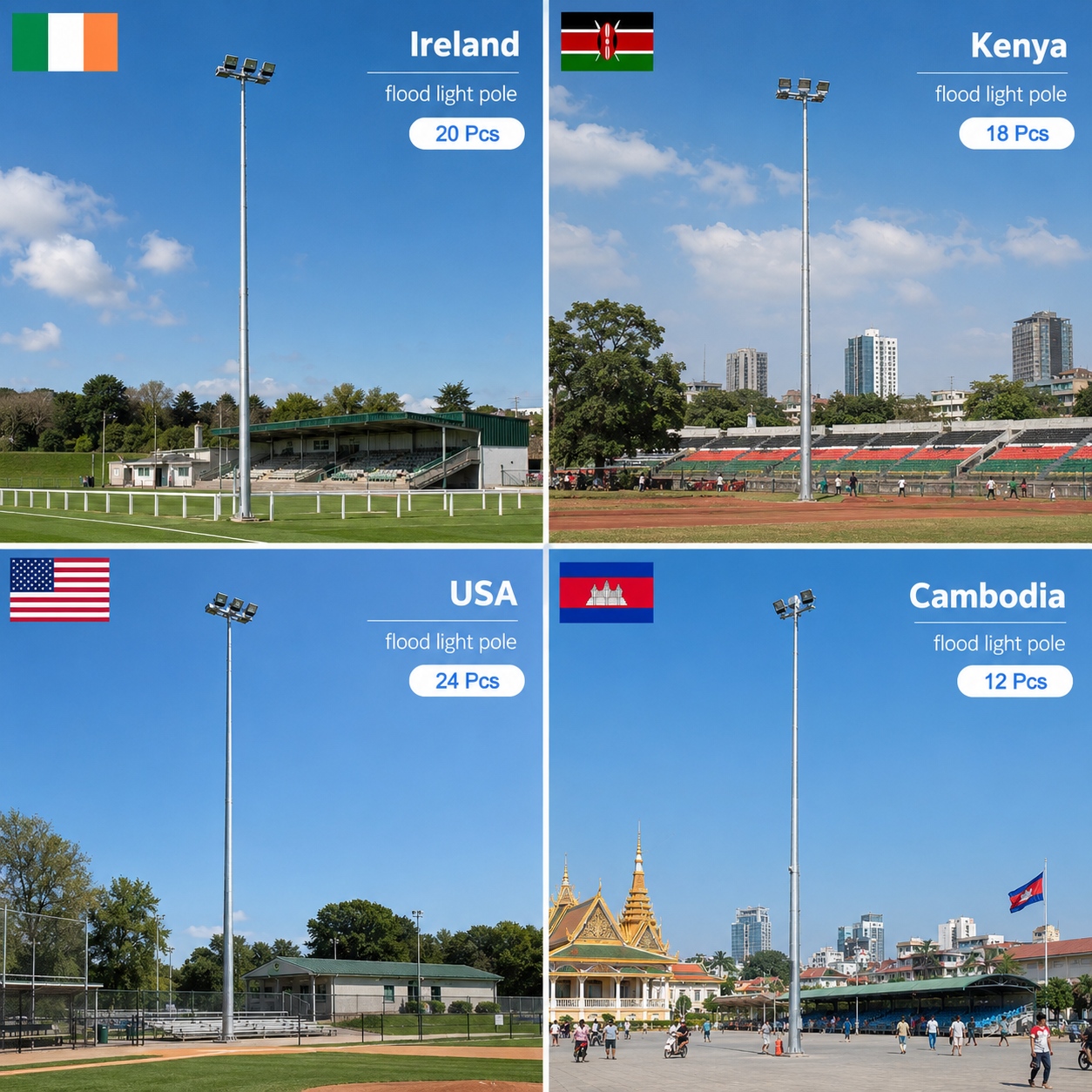

This mid‑pole floodlight is specially designed for medium‑scale outdoor public areas that require reliable, uniform and cost‑effective lighting.

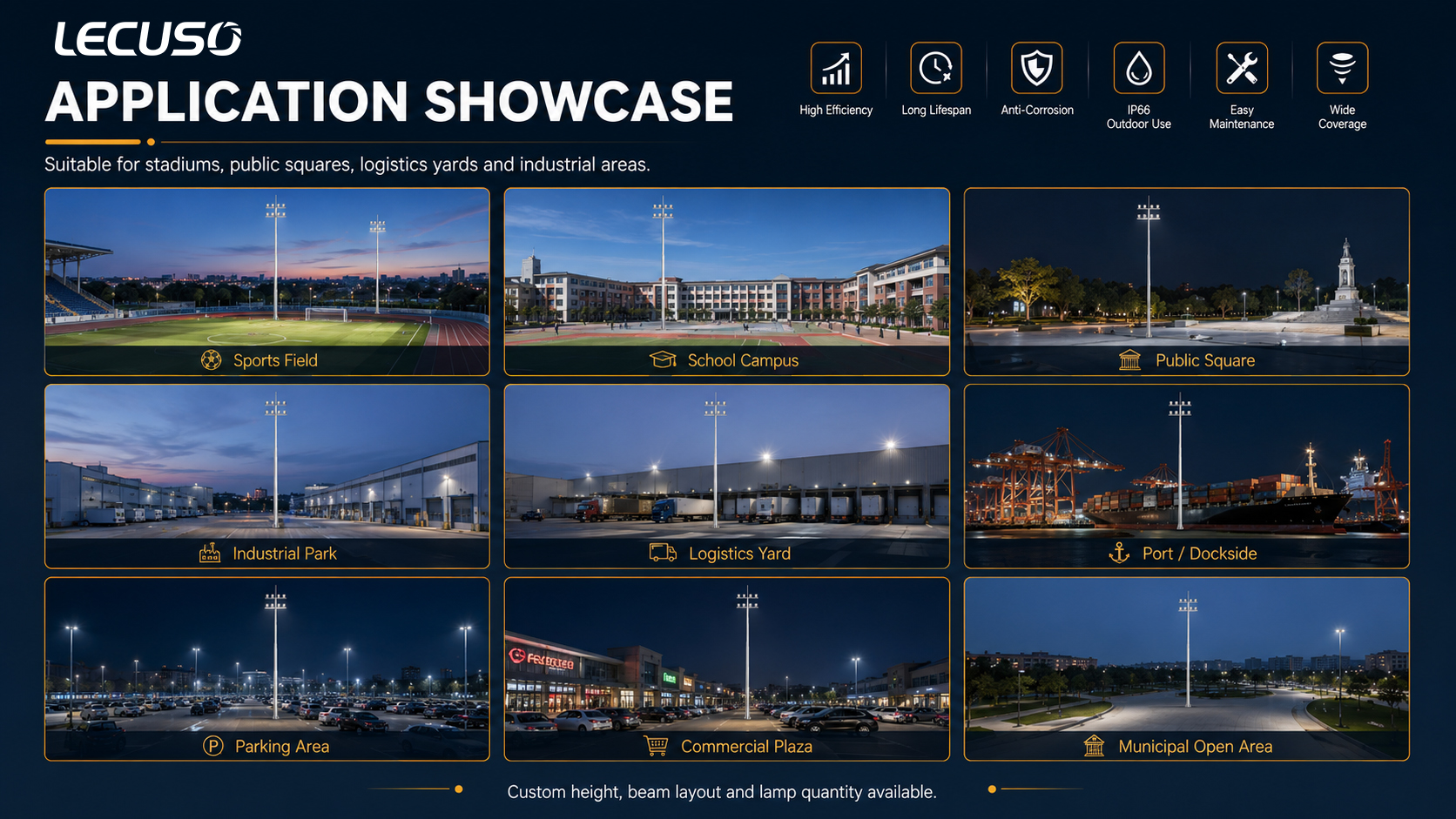

It is widely used in urban parks, residential quarters, small squares, pedestrian streets, parking lots, scenic spots, schools, factory districts and community sports grounds.
With good wind resistance, corrosion protection and stable light output, it adapts to rainy, humid, high‑temperature and coastal environments. Its compact structure and easy maintenance make it a preferred choice for municipal, commercial and industrial lighting projects pursuing high cost‑performance and long‑term stability.

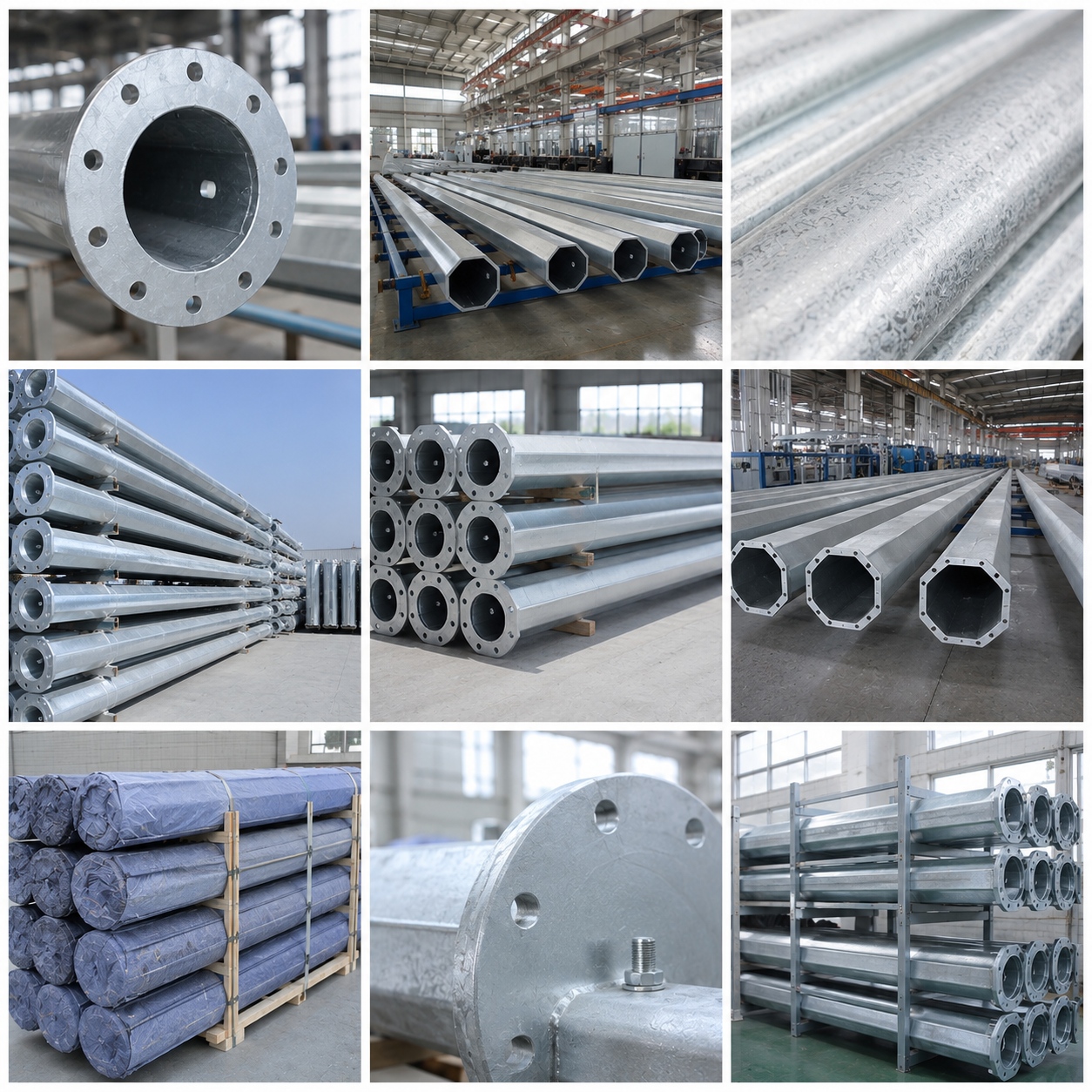

Advanced Production Process
1.Raw material inspection
2.Cutting → Molding or bending
3.Longitudinal welding → Dimension verification
4.Flange welding → Hole drilling → Calibration → Deburring
5.Galvanization or powder coating → Painting → Recalibration → Threading → Packaging
This strict quality control ensures every LECUSO steel lighting pole meets global standards and performs reliably in outdoor environments.
Detail Display
