Manufacturer 5M-15M Octagonal and Round Foldable Street Solar Light Pole
Features

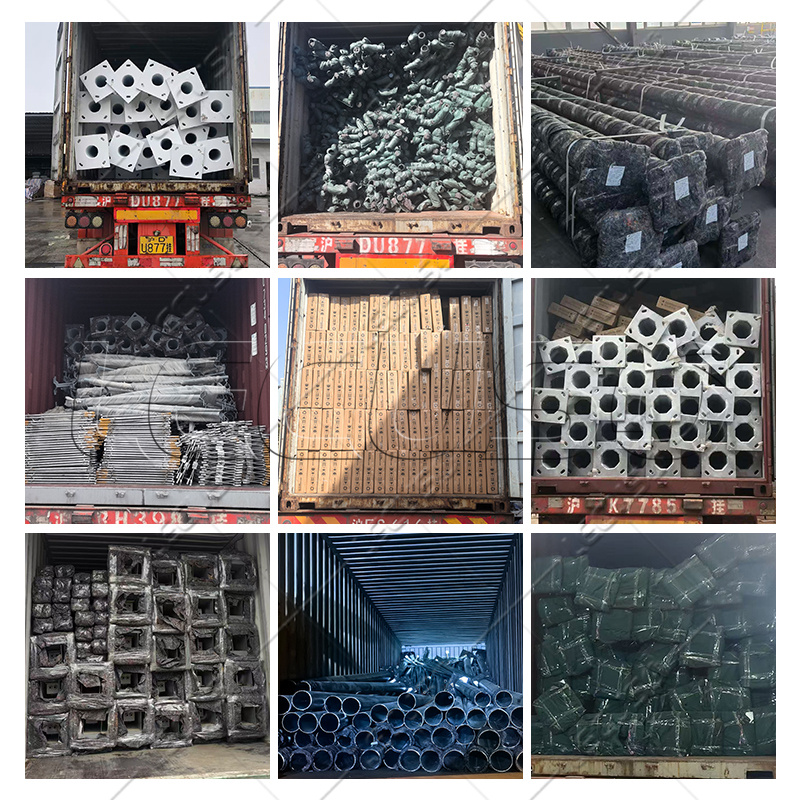

1.Low transportation cost and more convenient storage
With a folding design, the overall length of the lamp post can be significantly shortened, facilitating dense stacking and loading, and reducing the space occupied by transportation vehicles.
With a folding design, the overall length of the lamp post can be significantly shortened, facilitating dense stacking and loading, and reducing the space occupied by transportation vehicles.
2.Higher installation and construction efficiency

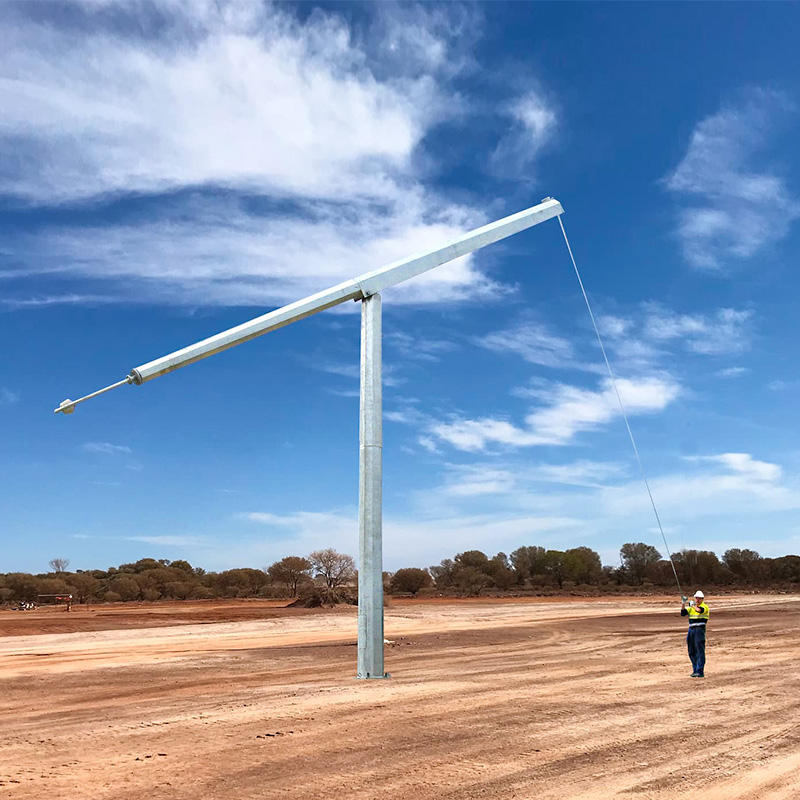

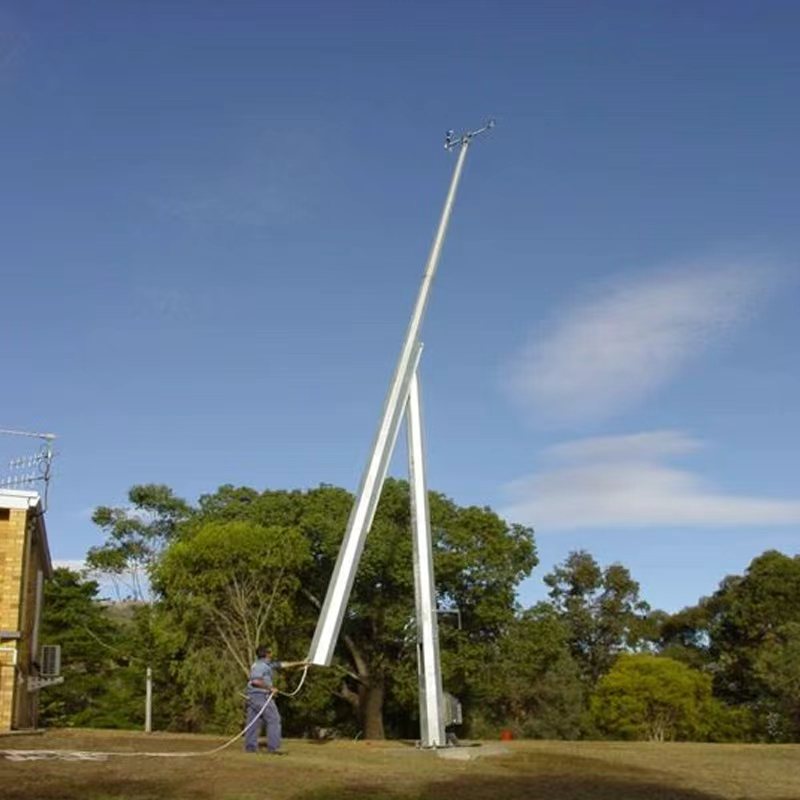

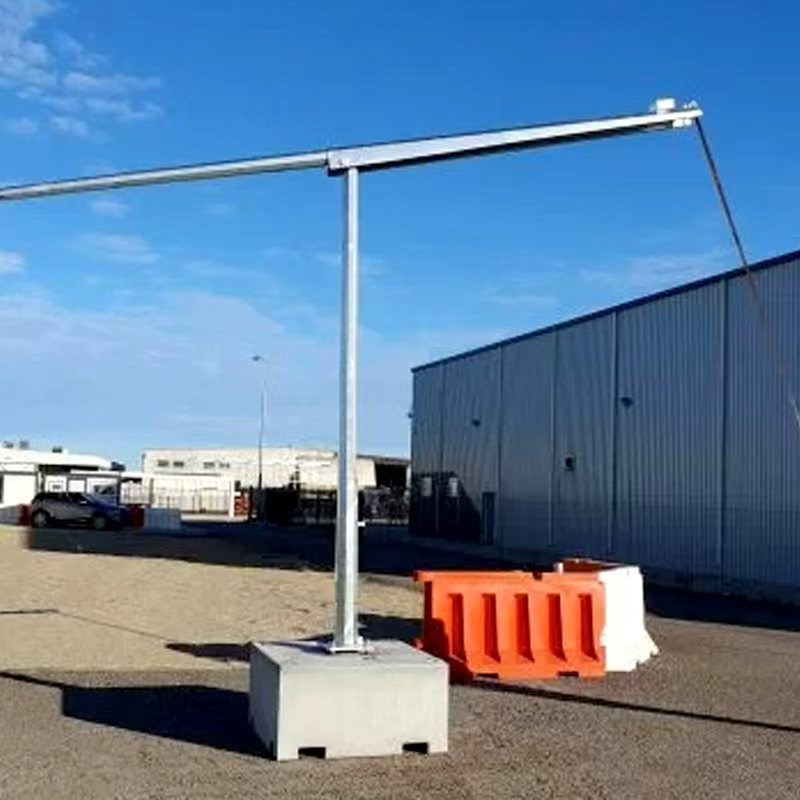

No large-scale equipment is required.The folding lamp post can be folded in sections, manually transported to the installation point, and then unfolded and fixed on site.
No large-scale equipment is required.The folding lamp post can be folded in sections, manually transported to the installation point, and then unfolded and fixed on site.
3.Maintenance and repair are safer

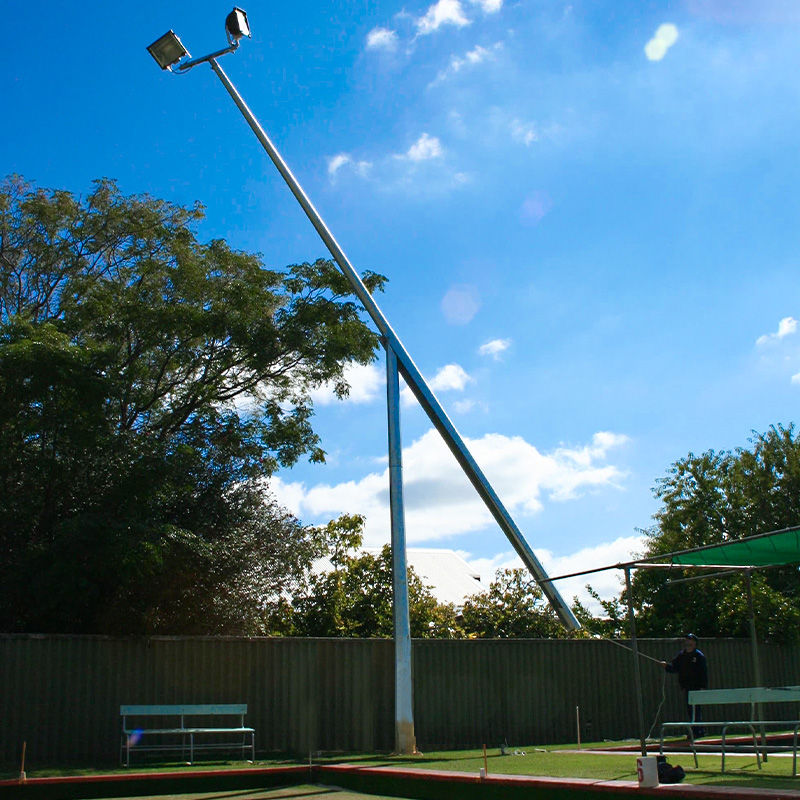

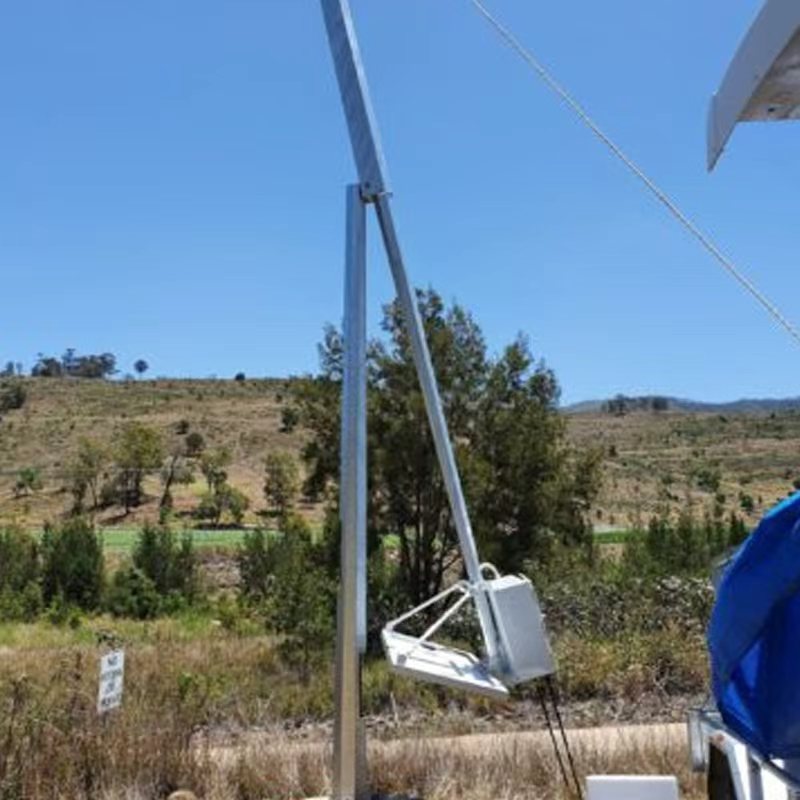

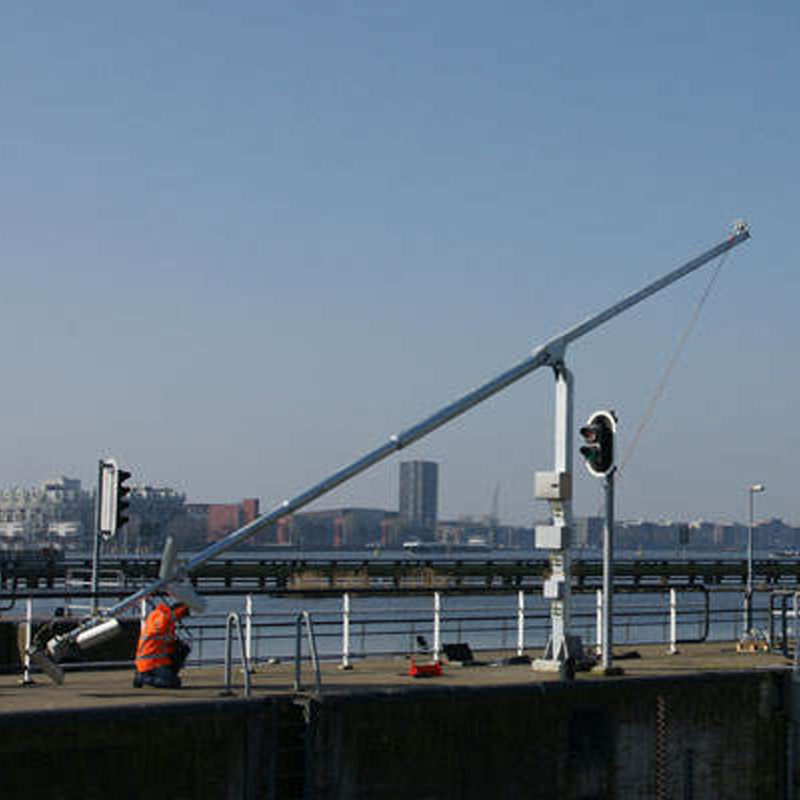

Just fold up the lamp post and lower it to ground height to operate. This not only reduces the safety risks of high-altitude operations but also lowers the requirements for the professional skills of maintenance personnel.
Just fold up the lamp post and lower it to ground height to operate. This not only reduces the safety risks of high-altitude operations but also lowers the requirements for the professional skills of maintenance personnel.
4.It has strong adaptability
The height of the lamp post can be adjusted according to the usage requirements. The foldable lamp post can be quickly disassembled, assembled and transferred, with a high reuse rate.
The height of the lamp post can be adjusted according to the usage requirements. The foldable lamp post can be quickly disassembled, assembled and transferred, with a high reuse rate.
5.Better wind resistance
It adopts a segmented hinge + reinforced lock design. When encountering severe weather such as typhoons and heavy rain, it can be temporarily folded to lower the height, reduce wind resistance, and lower the probability of the lamp post being blown over.
It adopts a segmented hinge + reinforced lock design. When encountering severe weather such as typhoons and heavy rain, it can be temporarily folded to lower the height, reduce wind resistance, and lower the probability of the lamp post being blown over.
Product Parameters
| Product | Upper/Bottom(MM) | THK(MM) | Flange(MM) | Basic(MM) |
| 6M Pole | 70/135 | 2.75 | 260*12 | 60MM*18 |
| 6M Bent Arm Pole | 58/145 | 2.75 | 260*12 | 60MM*18 |
| 7M Pole | 70/150 | 2.75 | 260*12 | 70MM*18 |
| 7M Bent Arm Pole | 58/160 | 2.75 | 300*12 | 70MM*18 |
| 8M Pole | 70/158 | 3 | 300*12 | 75MM*18 |
| 8M Bent Arm Pole | 58/160 | 3 | 300*12 | 75MM*18 |
| 9M Pole | 80/185 | 3.25 | 320*14 | 80MM*20 |
| 9M Bent Arm Pole | 58/170 | 3.25 | 320*14 | 80MM*20 |
| 10M Pole | 78/185 | 3.5 | 350*16 | 85MM*22 |
| 10M Bent Arm Pole | 58/190 | 3.5 | 350*16 | 85MM*22 |
| 11M Pole | 80/200 | 3.5 | 400*18 | 95MM*22 |
| 11M Bent Arm Pole | 58/190 | 3.5 | 400*18 | 95MM*22 |
| 12M Pole | 80/215 | 3.5 | 400*18 | 95MM*22 |
| 12M Bent Arm Pole | 60/205 | 3.5 | 400*18 | 95MM*22 |
| Poles height | 3m to 40m | |||
| Shape | Round conical; Octagonal tapered; Straight square; Tubular stepped;Shafts are made of steel sheet that folded into required shape and welded longitudinally by automaticarc welding machine | |||
| Material | Q235,Q345,Iron,Stell,Aluminum | |||
| Brackets/ Arm | Single or double brackets/ arm are in the shape and dimension as per customers requirement | |||
| Welding | It has past flaw testing.Internal and external double welding makes the welding beautiful in shape.And confirms with international welding standard of CWB,BS EN15614 | |||
| Thickness | 1.8mm-20mm | |||
| surface treatment | Hot dip galvanization with thickness of 80-100µm average in accordance with Chinese standard GB/T 13912-2002 or American standard ASTM A123, IS: 2626-1985.BS EN ISO 1461 | |||
| Base plate mounted | Base plate is square or round in shape with slotted holes for anchor bolt and dimension as per customers requirement. | |||
| Wind resistance | Customized,according to customer's environment | |||
| Powder coating | Pure polyester powder painting, color is optional according to RAL Color stardand. | |||
| Customized/Design Service | Offered | |||
Adaptation to the environment
1. Vast areas without electricity that are far from the power grid, such as remote mountainous regions, grassland pastures, border guard posts, field workstations, pre-mining camps, and nature reserves, where long-term, stable, and maintenance-free lighting is required, and the construction and maintenance costs of ordinary municipal power lighting are extremely high.
2. Rescue sites after natural disasters such as earthquakes, floods and typhoons, areas with power outages, and complex and harsh environments where temporary lighting systems need to be urgently established in various public safety emergencies.

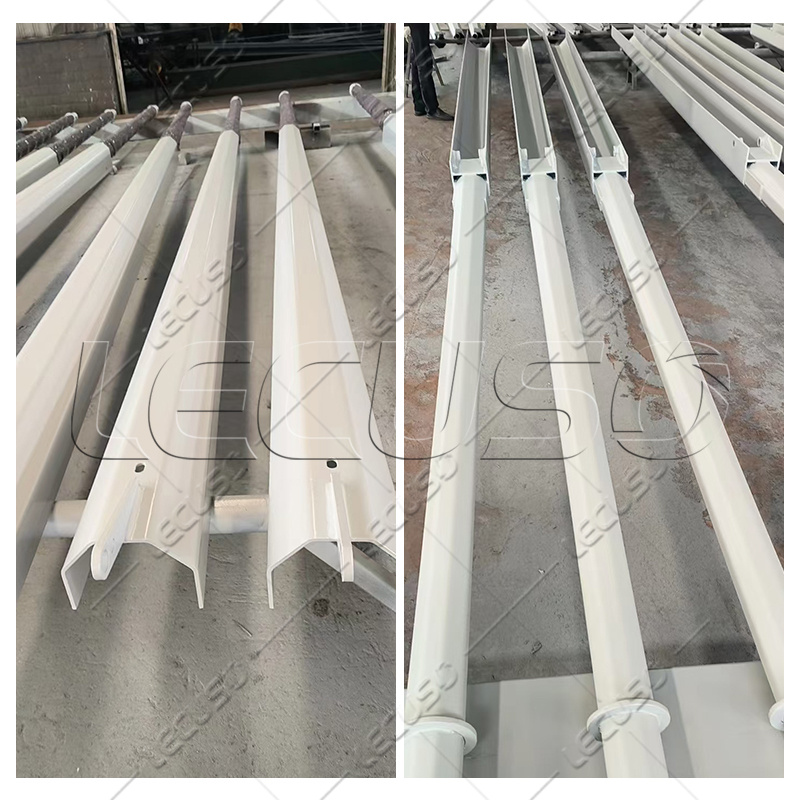

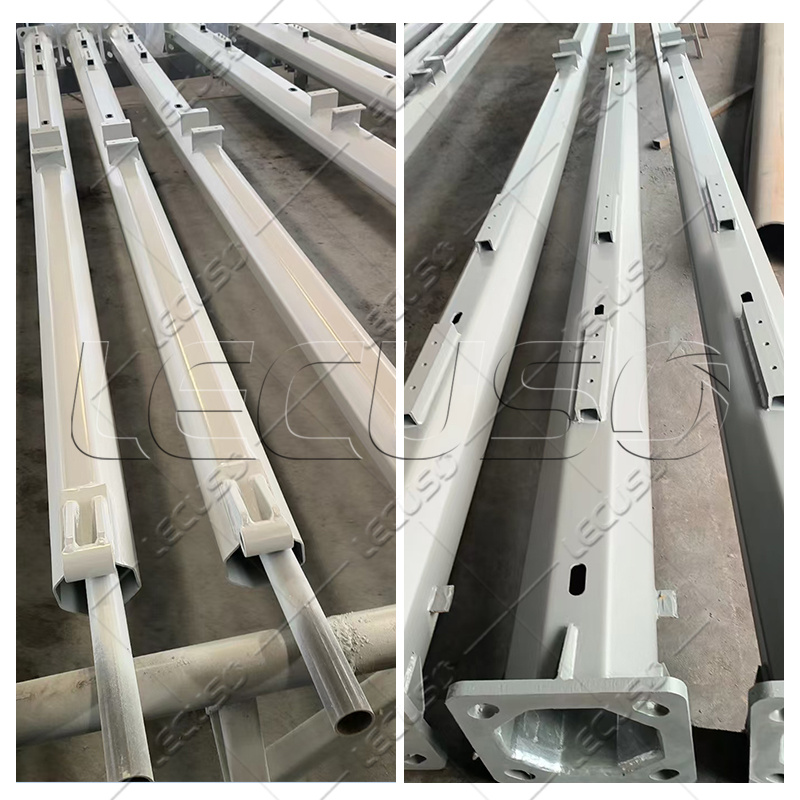

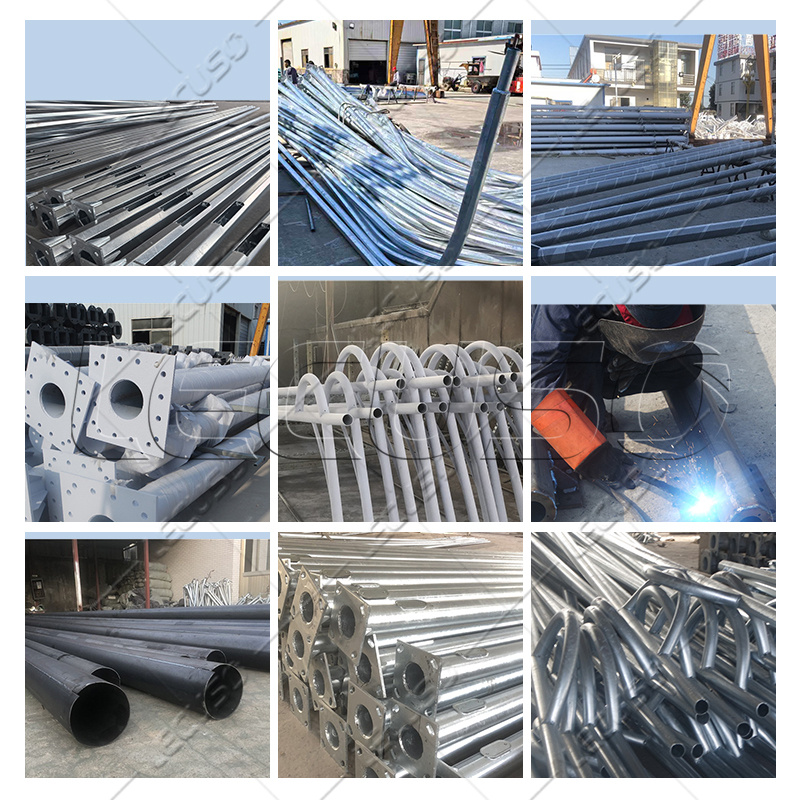

Detail Display
