Manufacturer's 5M 8M 10M 12M 15M Foldable Hot-dip Galvanized Mid hinged pole Solar Floodlight Pole
Features
1.Innovative folding structure, ultra‑convenient transport
Adopts one‑piece folding mechanical design, no complex disassembly needed. Greatly improving deployment efficiency.
2.Rugged anti‑wind & anti‑corrosion structure
Full anti‑corrosion treatment and sealed protection ensure strong wind resistance and durability in rainy, humid, high‑salt and high‑temperature outdoor environments.
3.High‑efficiency LED lighting system
Low light decay and stable color temperature provide soft, low‑glare lighting that protects eyes and improves visibility.
4.Tool‑free quick installation & height adjustment
Integrated locking mechanism allows free height adjustment without extra tools. Stable self‑locking ensures safe use.
5.Full electrical safety & stable operation
Built‑in surge protection, overload protection and IP65 waterproof rating.
6.Wide customization & intelligent compatibility
Compatible with intelligent dimming, remote control and sensor control to meet energy‑saving and intelligent management needs.
Product Parameters
| HEIGHT | DIAMERTER(MM) | THICKNESS(MM) | Base Plate |
| 6M | Top DIA:60 Bottom DIA:140MM | 3mm | 280*12MM |
| 8M | Top DIA:70 Bottom DIA:160MM | 3.5mm | 300*16MM |
| 10M | Top DIA:70 Bottom DIA:180MM | 4mm | 350*20MM |
| 12M | Top DIA:80 Bottom DIA:190MM | 4mm | 400*20MM |
| 15M | Top DIA:120 Bottom DIA:300MM | 5mm/6mm | 600*20MM |
| Applications: | Ideal for airports, seaports, plazas, stadiums, squares, highways, streets, and other public areas. | ||
| Shape | Conical, conoid, multi-pyramidal, columniform, or polygonal designs to match urban and industrial aesthetics. | ||
| Material | Made from high-strength steel including Q345B/A572, Q235B/A36, and hot-rolled coil from Q460, ASTM573 GR65, GR50, SS400, SS490. Ensures durability and long-lasting performance in outdoor environments. | ||
| Lamp power | Supports 50W to 300W lighting fixtures at 220V (±10%) / 50Hz. Suitable for LED, high-pressure sodium, or metal halide lamps. | ||
| Surface treatment | Hot-dip galvanized per ASTM A123 standard. Optional color polyester powder coating or customized finishes to meet client specifications. Offers corrosion resistance and a sleek appearance. | ||
| Joint of Poles | Insert mode, inner-flange mode, or face-to-face joint mode for easy assembly and maintenance. | ||
| Design of pole | Engineered to withstand earthquakes up to grade 8, ensuring safety in all outdoor conditions. | ||
| Welding | Internal and external double welding ensures structural integrity and aesthetic finish. Complies with AWS (American Welding Society) standards. | ||
| Thickness | 1 mm – 30 mm, customizable for specific load and environmental requirements. | ||
| Production Process | Raw material inspection → Cutting → Molding or bending → Longitudinal welding → Dimension verification → Flange welding → Hole drilling → Calibration → Deburring → Galvanization or powder coating → Recalibration → Threading → Packaging. | ||
| Packages | Poles are normally covered with mats or straw bales at top and bottom for protection. Customized packaging is available. Each 40HC or OT container can load based on client specifications and pole dimensions. | ||
Why Choose Our Steel Lighting Poles?
LECUSO offers high-quality street lighting poles and outdoor lighting solutions designed for durability, safety, and aesthetic appeal. Our poles are ideal for airports, seaports, plazas, stadiums, squares, highways, and streets, providing reliable support for LED, metal halide, or high-pressure sodium lamps.
● Multiple Designs: Conical, conoid, multi-pyramidal, columniform, or polygonal poles to suit urban and industrial environments.
● Durable Materials: Manufactured from Q345B/A572, Q235B/A36, and hot-rolled coil from Q460, ASTM573 GR65, GR50, SS400, SS490.
● Wide Lamp Compatibility: Supports 50W – 300W lighting fixtures at 220V (±10%) / 50Hz.
● Corrosion Resistance: Hot-dip galvanized according to ASTM A123, with optional polyester powder coating for a long-lasting finish.
● Customizable Joints: Insert mode, inner-flange mode, or face-to-face joint mode for flexible installation.
● Seismic Safety: Engineered to resist earthquakes up to grade 8.
● Precision Welding: Internal and external double welding ensures structural integrity, compliant with AWS (American Welding Society) standards.
● Variable Thickness: 1 mm – 30 mm, customizable to load requirements and environmental conditions.

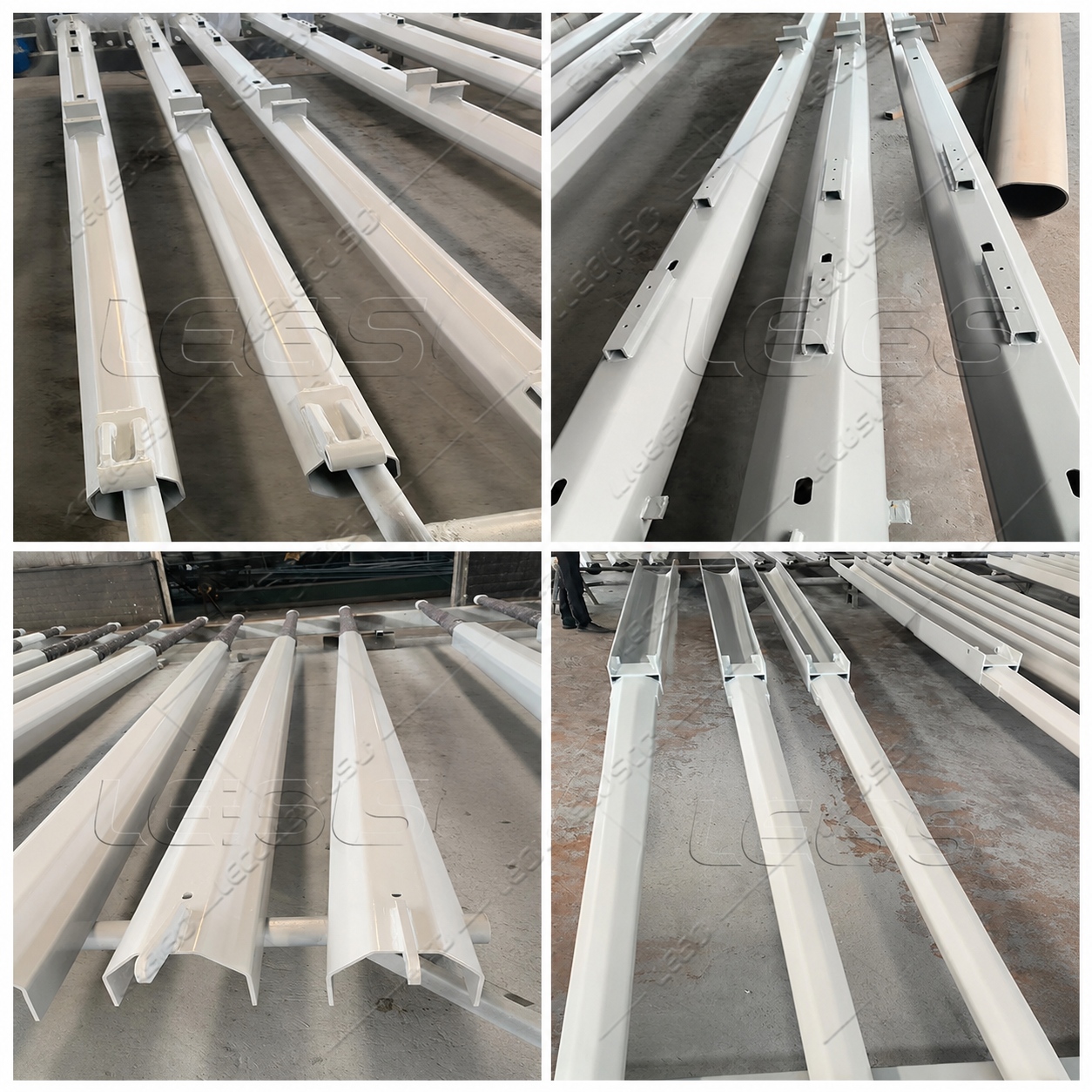

Advanced Production Process
1.Raw material inspection
2.Cutting → Molding or bending
3.Longitudinal welding → Dimension verification
4.Flange welding → Hole drilling → Calibration → Deburring
5.Galvanization or powder coating → Painting → Recalibration → Threading → Packaging
This strict quality control ensures every LECUSO steel lighting pole meets global standards and performs reliably in outdoor environments.
Packaging & Shipping
● Poles are normally covered with mats or straw bales at the top and bottom.
● Customized packaging available per client requirements.
● Each 40HC or OT container loading capacity is calculated according to pole size and client specifications.
Detail Display
