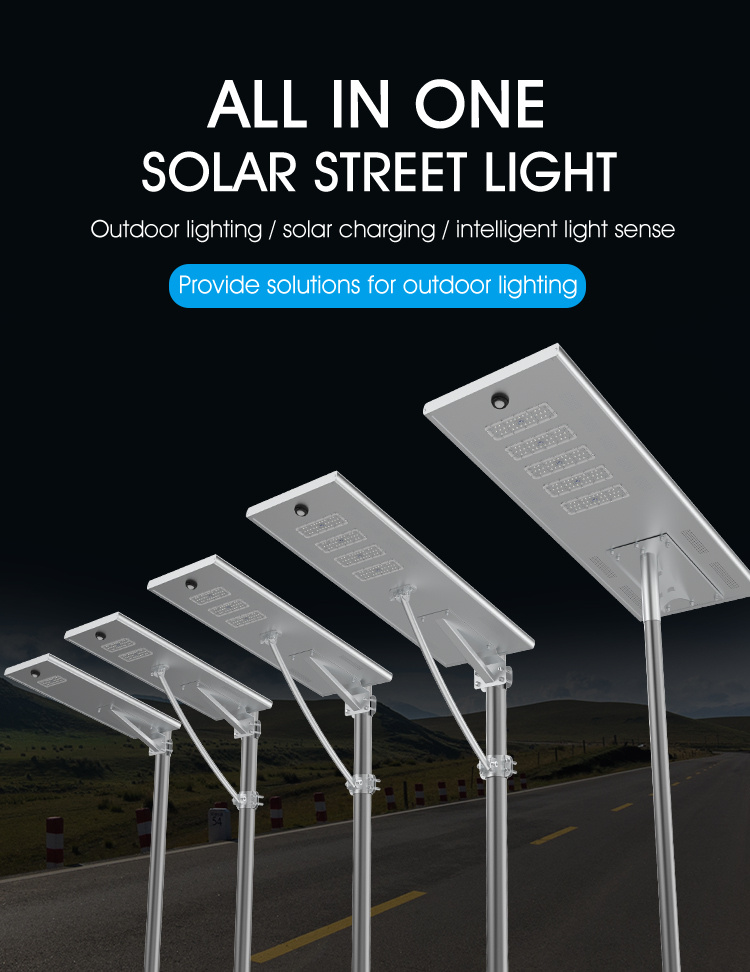

SL Series 30W-150W IP65 Classic Model All in one Solar Street Light
Features
1.High-efficiency energy conversion
Equipped with monocrystalline silicon solar panels with 21% photoelectric conversion efficiency, achieving fast charging in 5-6 hours even on cloudy days. Matched with high-capacity LiFePO4 batteries (24AH-72AH for 12.8V models), it ensures stable discharge for 12 hours and continuous lighting for 3-5 rainy days without sunlight.
Equipped with monocrystalline silicon solar panels with 21% photoelectric conversion efficiency, achieving fast charging in 5-6 hours even on cloudy days. Matched with high-capacity LiFePO4 batteries (24AH-72AH for 12.8V models), it ensures stable discharge for 12 hours and continuous lighting for 3-5 rainy days without sunlight.
2.Superior lighting performance

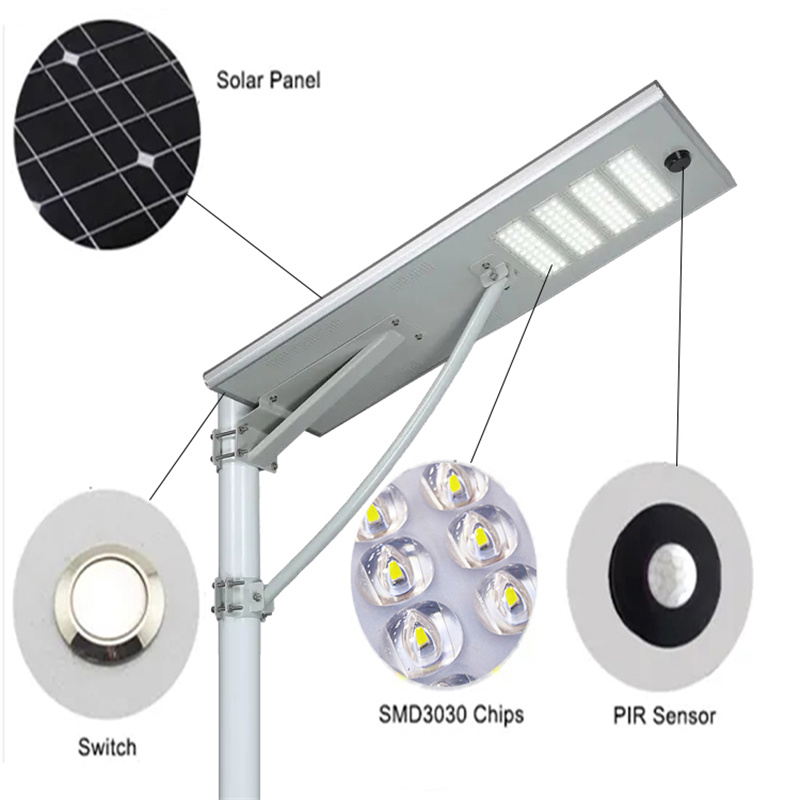

Adopts USA brand SMD3030/5050 LED chips with luminous efficiency up to 170lm/w, and color rendering index Ra≥80, which can restore natural colors truly without glare. The beam angle is 70*140°, providing wide and uniform lighting coverage. Power options range from 30W to 150W, with luminous flux up to 25500LM, meeting different lighting needs.
Adopts USA brand SMD3030/5050 LED chips with luminous efficiency up to 170lm/w, and color rendering index Ra≥80, which can restore natural colors truly without glare. The beam angle is 70*140°, providing wide and uniform lighting coverage. Power options range from 30W to 150W, with luminous flux up to 25500LM, meeting different lighting needs.
3.Intelligent control system

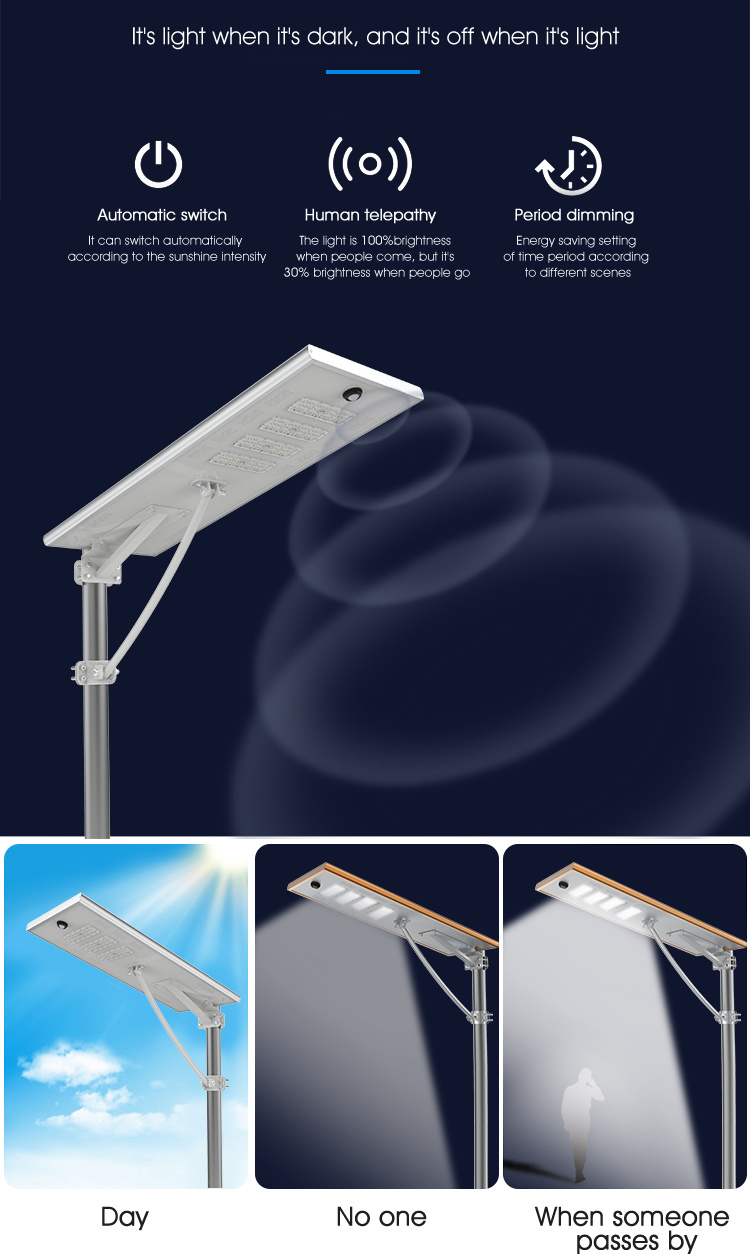

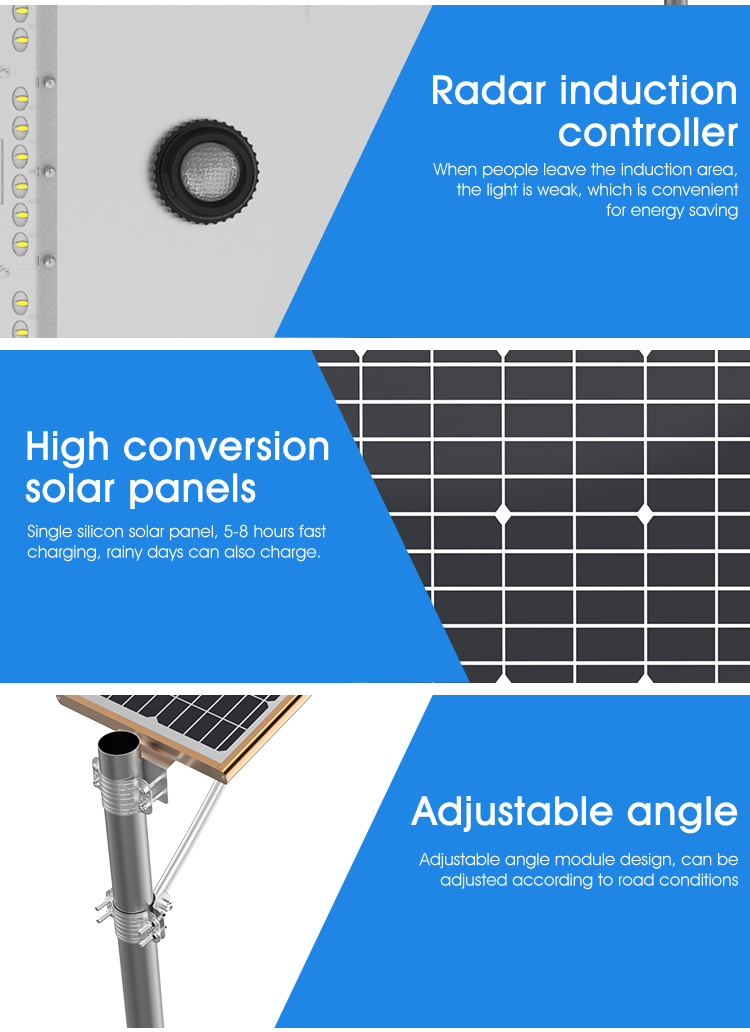

Integrates light control, motion sensor, remote control and timing functions. It automatically turns on at dusk and off at dawn; when motion is detected, the light switches to 100% brightness, and returns to 30% brightness after people leave, maximizing energy saving. The MPPT intelligent controller optimizes charging efficiency and protects the battery.
Integrates light control, motion sensor, remote control and timing functions. It automatically turns on at dusk and off at dawn; when motion is detected, the light switches to 100% brightness, and returns to 30% brightness after people leave, maximizing energy saving. The MPPT intelligent controller optimizes charging efficiency and protects the battery.
4.Durable and reliable structure

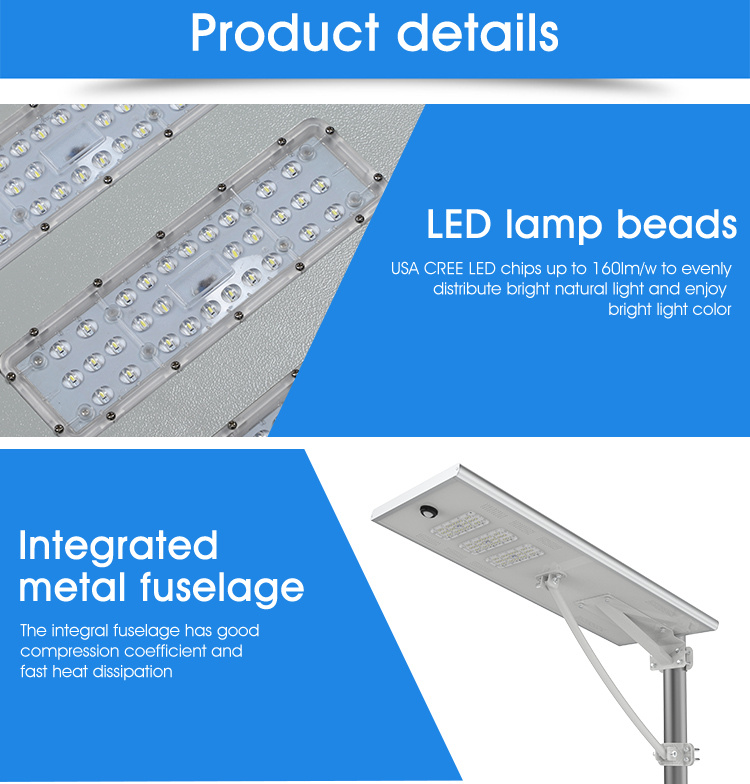

The integrated metal fuselage is made of high-quality aluminum alloy with PMMA lens, featuring excellent compression resistance and fast heat dissipation. With IP66 waterproof and dustproof rating, it can withstand harsh weather such as heavy rain, snow and dust. The product has passed EMC, RoHS, CCC, CE and other certifications, with a service life of up to 50,000 hours and a 3-5 year warranty.
The integrated metal fuselage is made of high-quality aluminum alloy with PMMA lens, featuring excellent compression resistance and fast heat dissipation. With IP66 waterproof and dustproof rating, it can withstand harsh weather such as heavy rain, snow and dust. The product has passed EMC, RoHS, CCC, CE and other certifications, with a service life of up to 50,000 hours and a 3-5 year warranty.
5.Flexible installation design
The adjustable bracket allows angle adjustment according to actual road conditions, adapting to different installation scenarios. The integrated design simplifies installation without complicated wiring, and the installation height ranges from 4M to 12M, matching different power models for convenient construction.
The adjustable bracket allows angle adjustment according to actual road conditions, adapting to different installation scenarios. The integrated design simplifies installation without complicated wiring, and the installation height ranges from 4M to 12M, matching different power models for convenient construction.

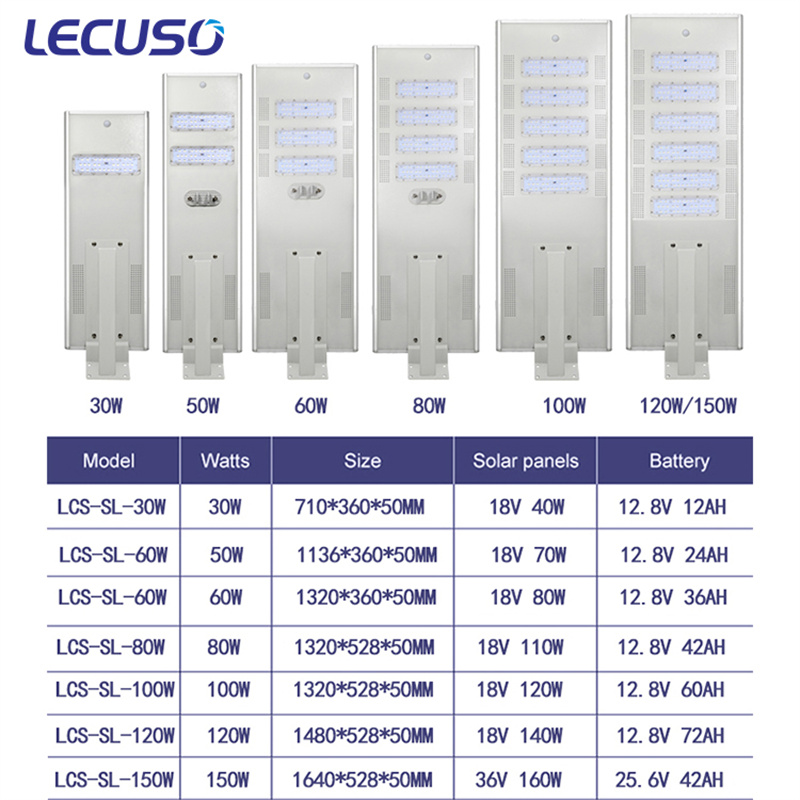

Product Parameters
| Power | 30w | 60w | 80w | 100w | 120w | 150w |
| 3030 LED chip | 50PCS | 150PCS | 200PCS | 250PCS | 300PCS | 384PCS |
| Luminous Flux | 5100LM | 10200LM | 13600LM | 17000LM | 20400LM | 25500LM |
| LiFePO4 Battery | 12.8v 24AH | 12.8v 36AH | 12.8V 48AH | 12.8V 60AH | 12.8V 72AH | 25.6V 48AH |
| Mono Solar Panel | 18V 50W | 18V 80W | 18V 110W | 18V 120W | 18V 150W | 18V 180w |
| Install height | 4-5M | 6-7M | 7-8M | 8-10M | 9-12M | 10-12M |
| Solar charging time | 5-6 hours | |||||
| Material | Aluminum Alloy+ PMMA | |||||
| Work temperature | -25℃ to 65℃ | |||||
| Warranty | 3/5 Years | |||||
Applicable environment

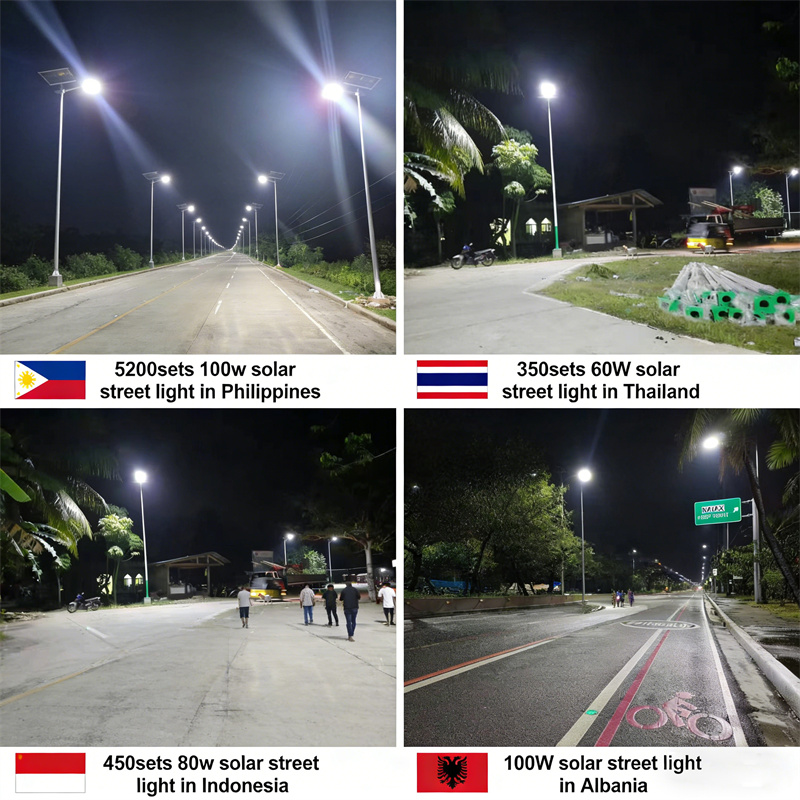

The SL series integrated solar street light is widely used in various outdoor lighting scenarios due to its stable performance, intelligent control and easy installation. It is suitable for urban and rural roads, highways, residential areas, courtyards, parks, squares, scenic spots, parking lots, rural highways, riverside roads and factory areas. Especially in areas with inconvenient power supply or high wiring costs, it can provide reliable lighting solutions, improving the safety of nighttime travel and the convenience of outdoor activities. It has been successfully applied in large-scale government projects in the Philippines, Thailand and other countries, and is also an ideal choice for green building projects and energy-saving renovation projects.
Detail Display
